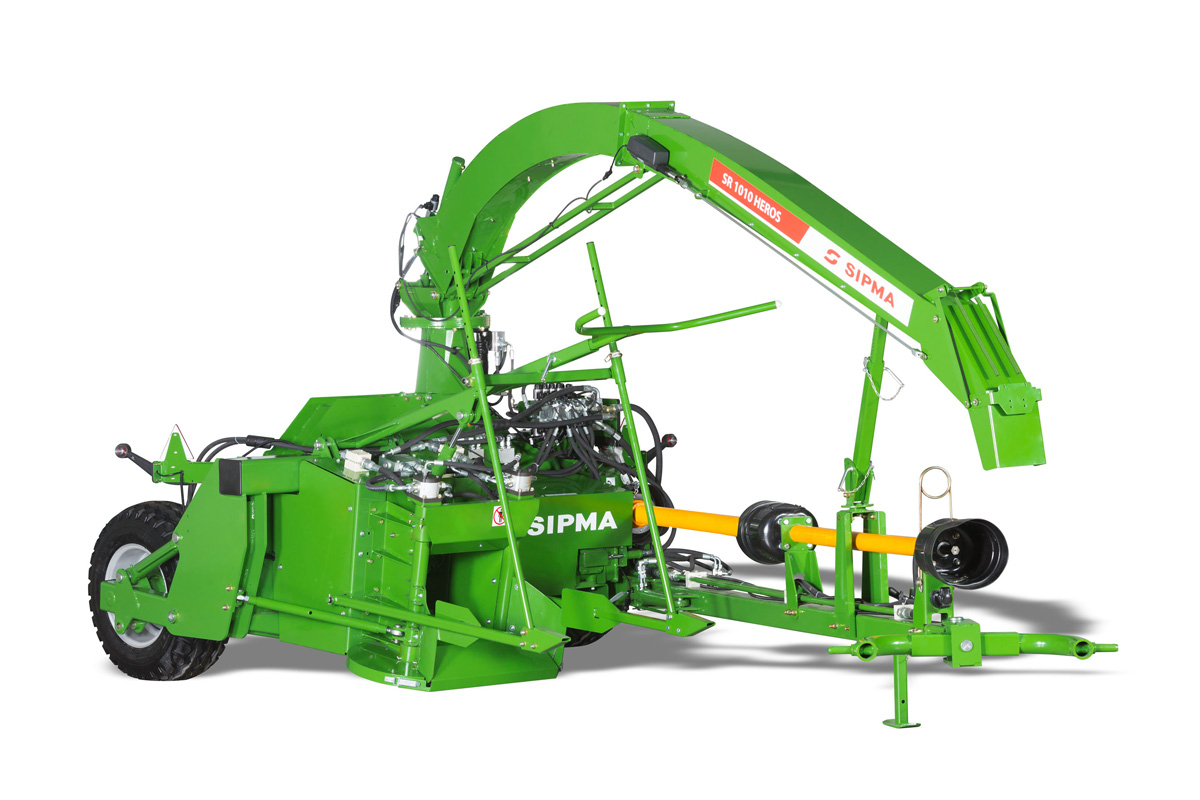

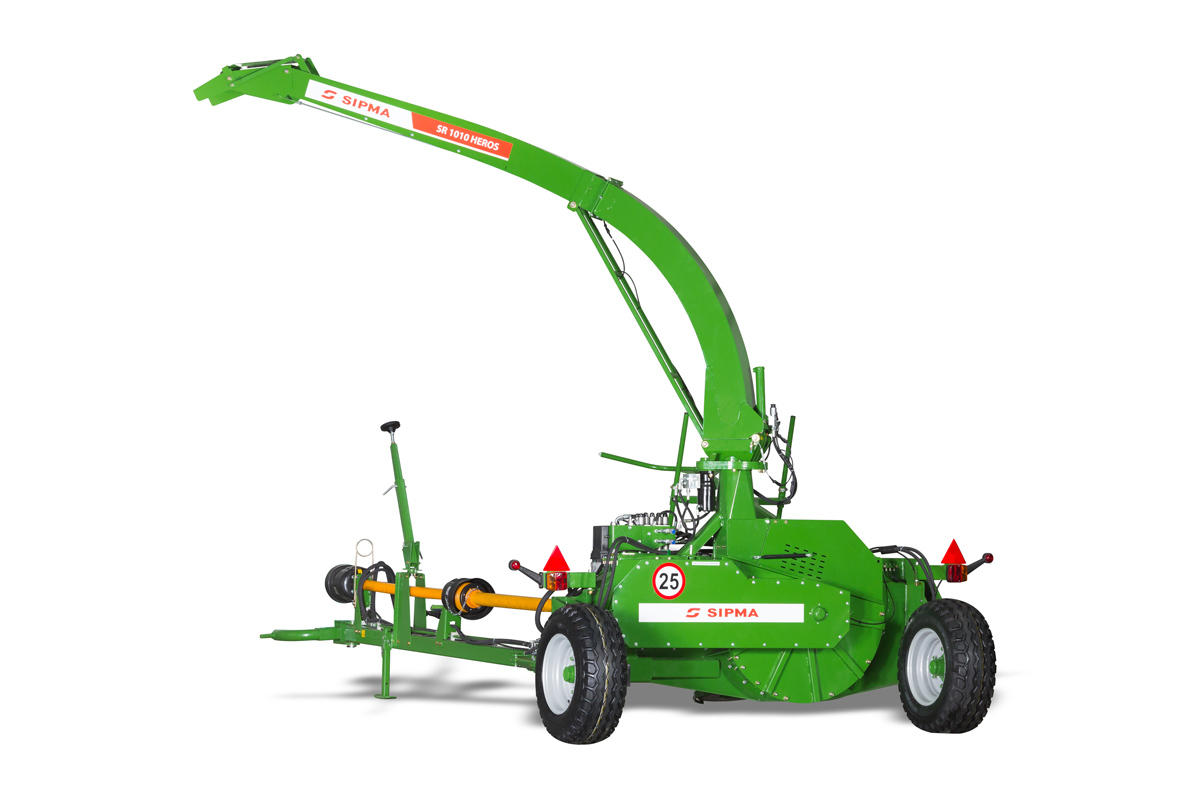

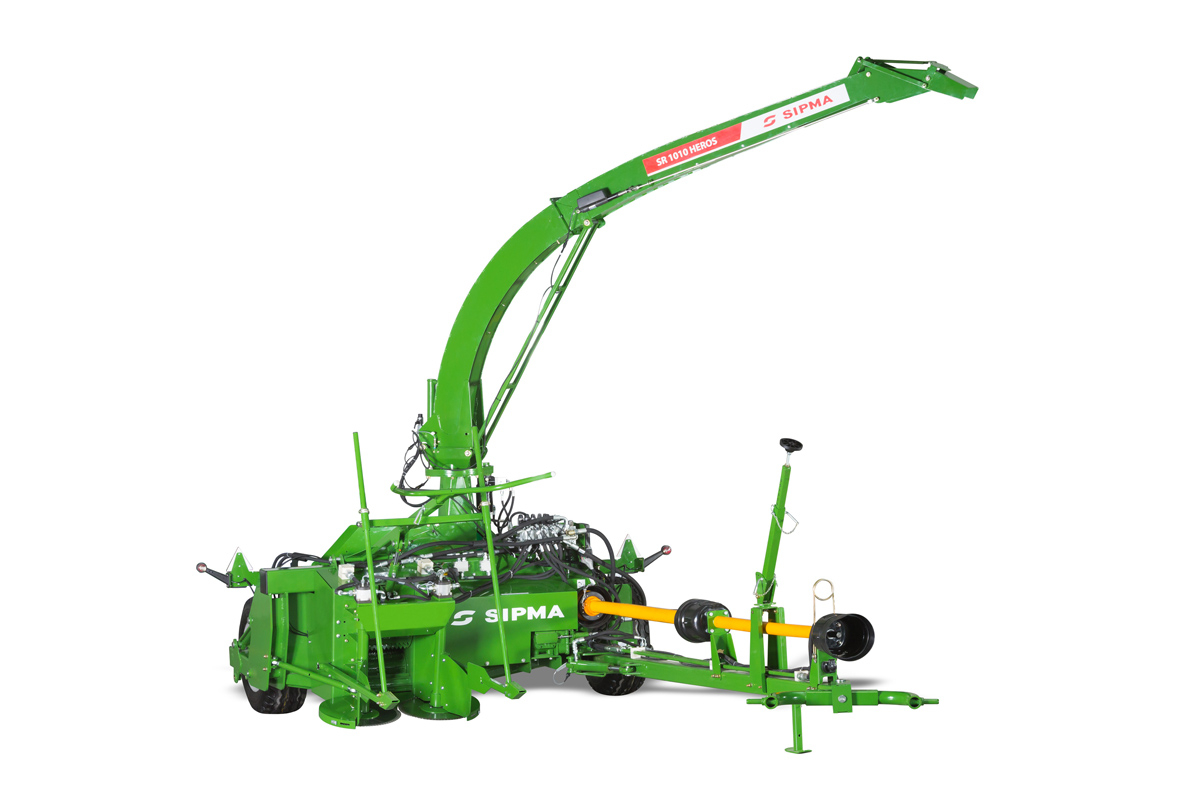

SIPMA SR 1010 HEROS trailed forage harvester is designed for single phase harvesting of energy crops, mainly energy willow.
- Cutting unit equipped with hydraulic drive of saws allows to reach high rotational speed of cutting blades, which improves cutting down the sprouts of energy crops, leaving the optimum rootstock for regrowth of plants. The arm bending the plants is adjustable from the tractor cabin and it enables proper orientatation the shoots with different heights into the pull-in unit.
- Compressing and pull-in unit consists of 5 ribbed rollers. It enables to correctly place and feed the chopping rotor chamber with shoots of energy crops. Mechanical pressure and variable clearance between the rollers ensures optimum compression of cut shoots and reliable transportation of crops. Power take-off shafts that drive the pull-in rollers are equipped with safety couplings, which reduce excessive load on the machine. As the direction of rotation of pull-in rollers can be changed from the operator cab, any clogging can be removed from the machine without leaving the tractor.
- Chopping rotor which at the same time acts as a flywheel, is equipped with cutting blades. At the rim of the rotor there are blades mounted, which provide quick and effective feed of shredded material onto means of transport.
- Built-in blade sharpening system allows for easy-to-use and accurate sharpening of blades, providing even edges. During grinding, the rotor revolves with low speed and grinding wheel easily sharpens the blades, which quickly become sharp again.
- Power transmission system with a belt gearing enables adjustment of length of the cut shoots of energy crops ranging from 20 to 55 mm and reduces the risk of damage to the machine during the momentary overloads. The entire power transmission system of the forage harvester is protected against overload with friction coupling mounted on the main power take-off shaft.
- Hydraulically controlled suspension allows you to adjust the height of crop cutting to the field conditions and provides proper clearance during transportation.
- Discharge chute enables effective feeding of shredded material onto means of transport with the ability to set the direction and distance of crop chips discharge.
- Hydraulically adjustable drawbar allows for correct setting of the machine and tractor in interrows, reducing the risk of damage to the rootstock and machine wheels to the minimum.
- Hydraulic system with electro-hydraulic block that operates all working items of the machine, consistent and optimum machine functions are provided, including smooth acceleration and stopping of the cutting unit.
- Electronic control allows to adjust the functions of the machine from the operator’s seat, without leaving the tractor.
- Functions of the electronic controller:
- activating the cutting unit;
- activating the reverse of the pull-in and compression unit;
- adjustment of the bending arm height;
- control of the discharge chute;
- adjustment of cutting height;
- drawbar control.
- Addidional equipment:
• extension of the discharge chute - allows to deliver the shredded material for greater distances;
• elevation of the discharge chute - allows to load the shredded material on higher means of transport;
• rear hitch - allows you to couple the trailer to the harvester in order to load the shredded material when it is not possible to for the means of transport to go past the harvester.
Product available upon request.
Model |
|
SR 1010 HEROS |
Number of rows / row spacing |
pcs./m |
1 / 0.75 |
Bulk discharge capacity |
t/h |
15 |
Number of cutting blades |
pcs. |
2 |
Diameter of cutting blades |
mm |
450 |
Cutting height |
mm |
50 - 120 |
Maximum diameter of cut shoots |
mm |
70 |
Height of cut shoots |
mm |
9000 |
Chopping unit |
|
disc and axe |
Number of blades |
pcs. |
4 |
Cutting length |
mm |
20 - 55 |
Max. height of discharge |
m |
5 |
Max. distance of discharge |
m |
10 |
Control system |
|
electronic |
Wheel size |
|
10.0 / 75 - 15.3 10 PR |
PTO rotation speed |
rpm |
540 |
Maximum working speed |
km/h |
8 |
Maximum transport speed |
km/h |
25 |
Power demand |
kW (HP) |
80 (108,8) |
Equipment |
|
|
wide angle PTO shaft with friction clutch |
|
● |
extension of the discharge chute |
|
○ |
elevation of the discharge chute |
|
○ |
rear hitch |
|
○ |
Dimensions |
|
|
length |
mm |
5000 |
width |
mm |
2650 |
height |
mm |
2350 |
loading height |
mm |
3880 |
Weight |
kg |
1500 |
● - standard ○ - additional equipment ✖ - unavailable
