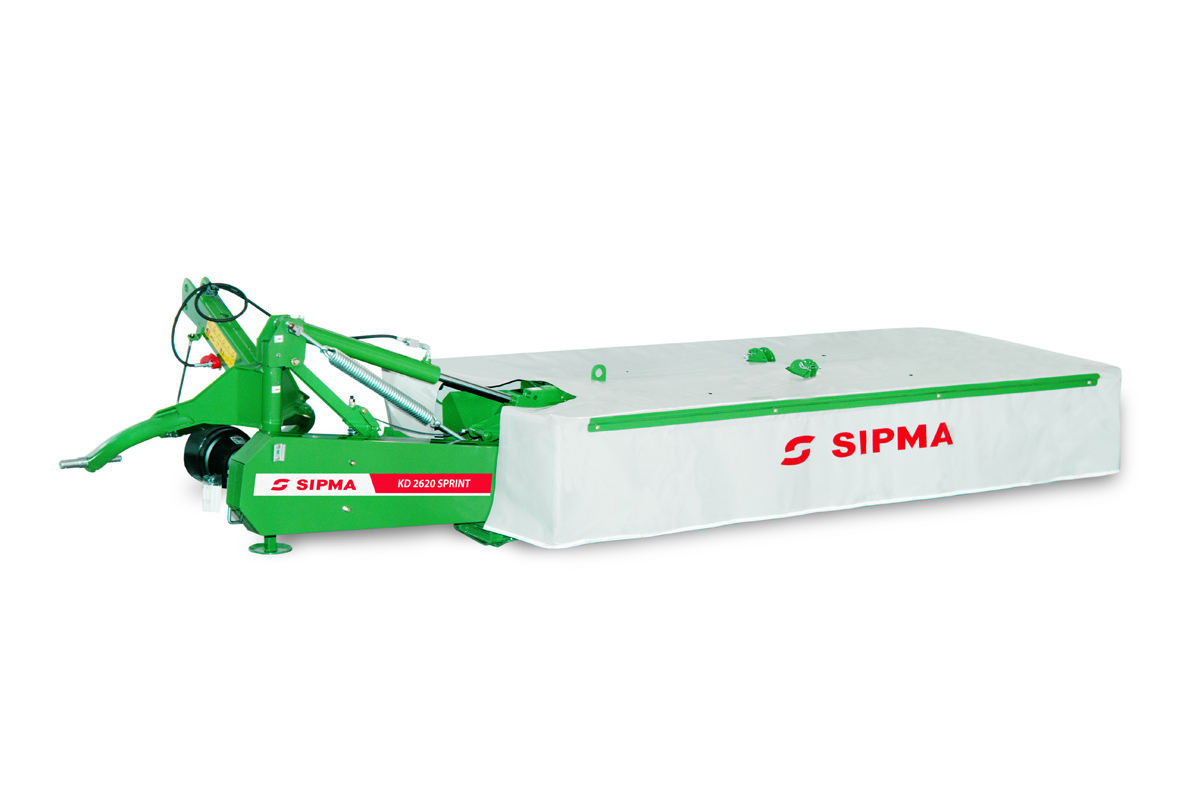

SIPMA KD 2620 SPRINT and SIPMA KD 3020 SPRINT are rearhitched disc mowers with side-suspension. They are modern, lightweight and simple design machines.
- Welded frame from closed and bent metal profiles is lightweight and guarantees high durability. It facilitates easy hitching of the disc mower to the three-point linkage of the tractor, with high comfort and efficiency of work.
- Mower bar side suspension is simple, but makes the mower perfectly follow the terrain with equal pressure on the ground.
- Modern SIPMA mower cutterbar with quick knife replacement system in standard that allows shortening service time to minimum.
- Safety spring fuse allow for tilting the mower bar backwards when running into an obstacle, which protects the machine components from damage.
- SIPMA PTO shaft with one-way clutch ensures smooth stopping of the machine rotating parts and protects the disc drives from damage.
- Mouldboards fitted behind the mower bar enable adjusting the forage width for the devices used in the further stages of harvesting.
- Quick knife replacement system enables quick and convenient replacement of knives, at the same time reducing service time to minimum.
- Front and rear openable covers facilitate servicing of the machine.
- Disc mower design enables transporting them vertically on the tractor side.
- Relief spring system with adjustment gear assures optimum pressure of the mowing bar on the ground.
- Wide mowing range of cutting bar (from -12˚ to +24˚) enables work on wavy and mountain fields.
- Hydraulic actuator allows lifting the disc mower to its transport position and when u-turning at the headland.
- Mowing height adjustment system operated with the upper link of the tractor three point linkage helps setting the proper mowing height.
Model |
KD 2620 SPRINT |
KD 3020 SPRINT |
Suspension type |
|
side |
side |
Mowing width |
m |
2,6 |
3,0 |
Mowing height |
|
|
|
minimum |
mm |
43 |
43 |
maximum |
mm |
73 |
73 |
Number of discs |
pcs |
6 |
7 |
Number of cutting knives |
pcs |
12 |
14 |
PTO rotation speed |
rpm |
540 |
540 |
Disc rotation speed |
rpm |
3150 |
3150 |
Working speed |
km/h |
≤ 15 |
≤ 15 |
Work efficiency |
ha/h |
≤ 2,6 |
≤ 3 |
Power demand |
kW (HP) |
45 (61) |
50 (68) |
Equipment |
|
|
PTO shaft |
|
● |
● |
Dimensions in working position |
|
|
|
length |
mm |
4550 |
4990 |
width |
mm |
1330 |
1330 |
height |
mm |
1160 |
1160 |
Weight |
kg |
600 |
640 |
● - standard ○ - additional equipment ✖ - unavailable
