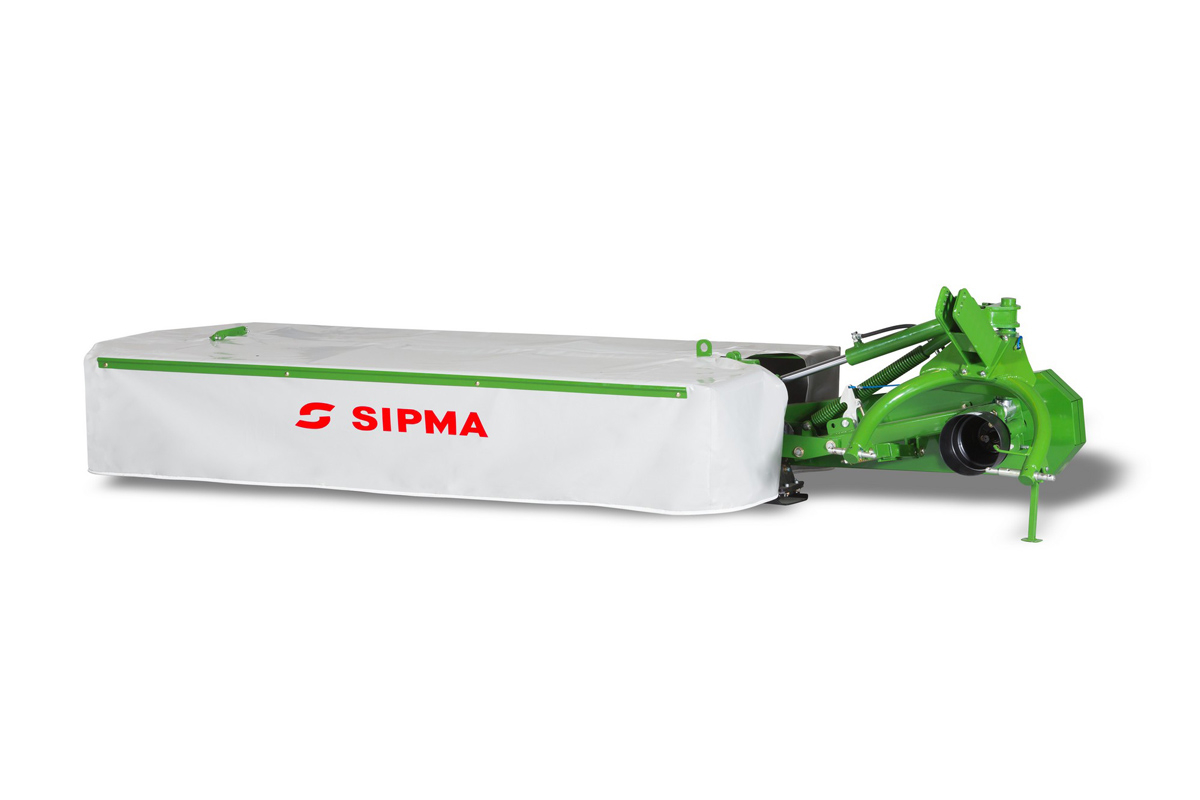

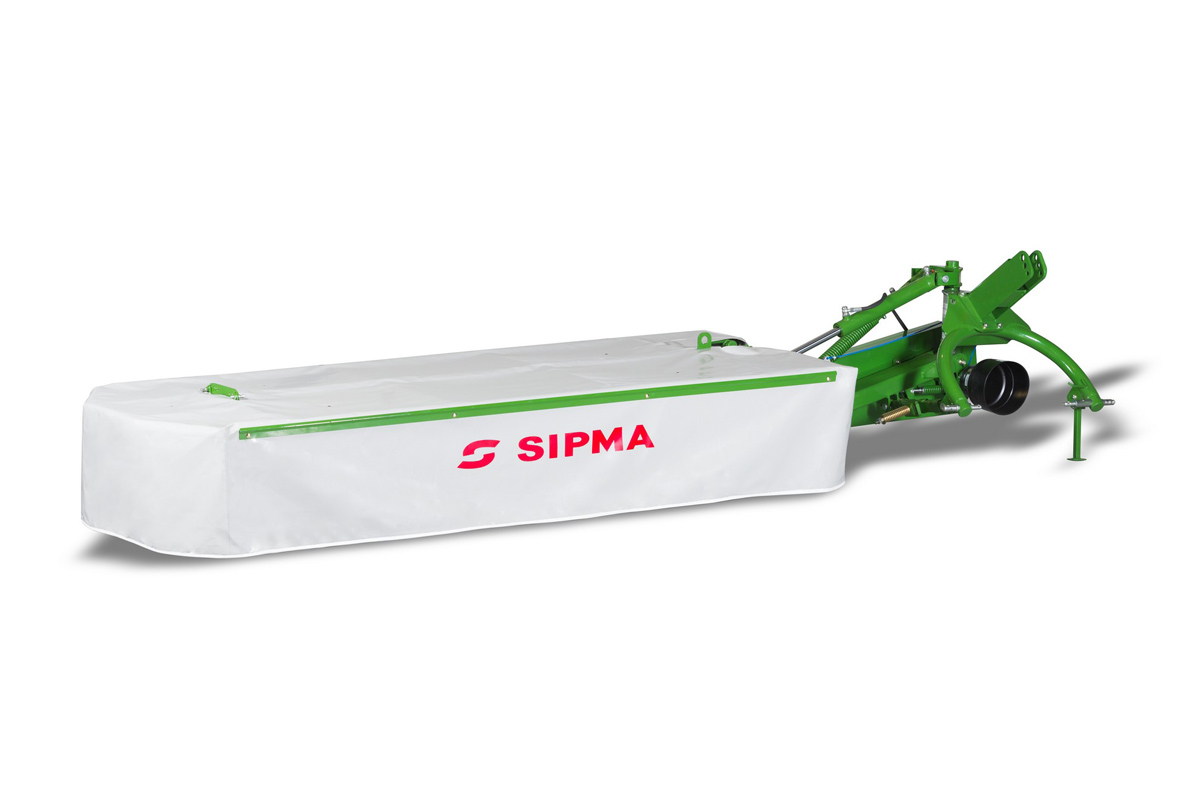

SIPMA KD 2510 KOS and SPIMA KD 2910 KOS are rear-hitched disc mowers with side-suspension. They are modern, lightweight and simple design machines.
SIPMA disc mowers are machines with modern design, solid frames and proven functionality. The are used to mow all kinds of green crops dedicated to direct feeding, for hay or for ensiling (haylage). The bottom drive design ensures the material is uniformly distributed at the entire width of the swathe, which contributes to a homogeneous drying of the mowed grass and allows direct harvesting with round balers (by eliminating tedding and raking).
- Welded frame from closed and bent metal profiles is lightweight and guarantees high durability. It facilitates easy hitching of the disc mower to the three-point linkage of the tractor, with high comfort and efficiency of work.
- Mower bar side suspension is simple, but makes the mower perfectly follow the terrain with equal pressure on the ground.
- Safety spring fuse allow for tilting the mower bar backwards when running into an obstacle, which protects the machine components from damage.
- SIPMA PTO shaft with one-way clutch ensures smooth stopping of the machine rotating parts and protects the disc drives from damage.
- Mouldboards fitted behind the mower bar enable adjusting the forage width for the devices used in the further stages of harvesting.
- Quick knife replacement system enables quick and convenient replacement of knives, at the same time reducing service time to minimum.
- Front and rear openable covers facilitate servicing of the machine.
- Disc mower design enables transporting them vertically on the tractor side.
- Relief spring system with adjustment gear assures optimum pressure of the mowing bar on the ground.
- Wide mowing range of cutting bar (from -12˚ to +24˚) enables work on wavy and mountain fields.
- Hydraulic actuator allows lifting the disc mower to its transport position and when u-turning at the headland.
- Mowing height adjustment system operated with the upper link of the tractor three point linkage helps setting the proper mowing height.
Model |
KD 2510 KOS |
KD 2910 KOS |
Suspension type |
|
side |
side |
Mowing width |
m |
2,40 |
2,85 |
Mowing height |
|
|
|
minimum |
mm |
43 |
43 |
maximum |
mm |
73 |
73 |
Number of discs |
pcs. |
6 |
7 |
Number of cutting knives |
pcs. |
12 |
14 |
PTO rotation speed |
rpm |
540 |
540 |
Disc rotation speed |
rpm |
2980 |
2980 |
Working speed |
km/h |
≤ 15 |
≤ 15 |
Work effciency |
ha/h |
≤ 2,5 |
≤ 2,9 |
Power demand |
kW (HP) |
45 (61) |
65 (88) |
Equipment |
|
|
PTO shaft |
|
● |
● |
Dimensions in working position |
|
|
|
length |
mm |
4070 |
4490 |
width |
mm |
1630 |
1630 |
height |
mm |
970 |
970 |
Weight |
kg |
500 |
520 |
● - standard ○ - additional equpment ✖ - unavailable
