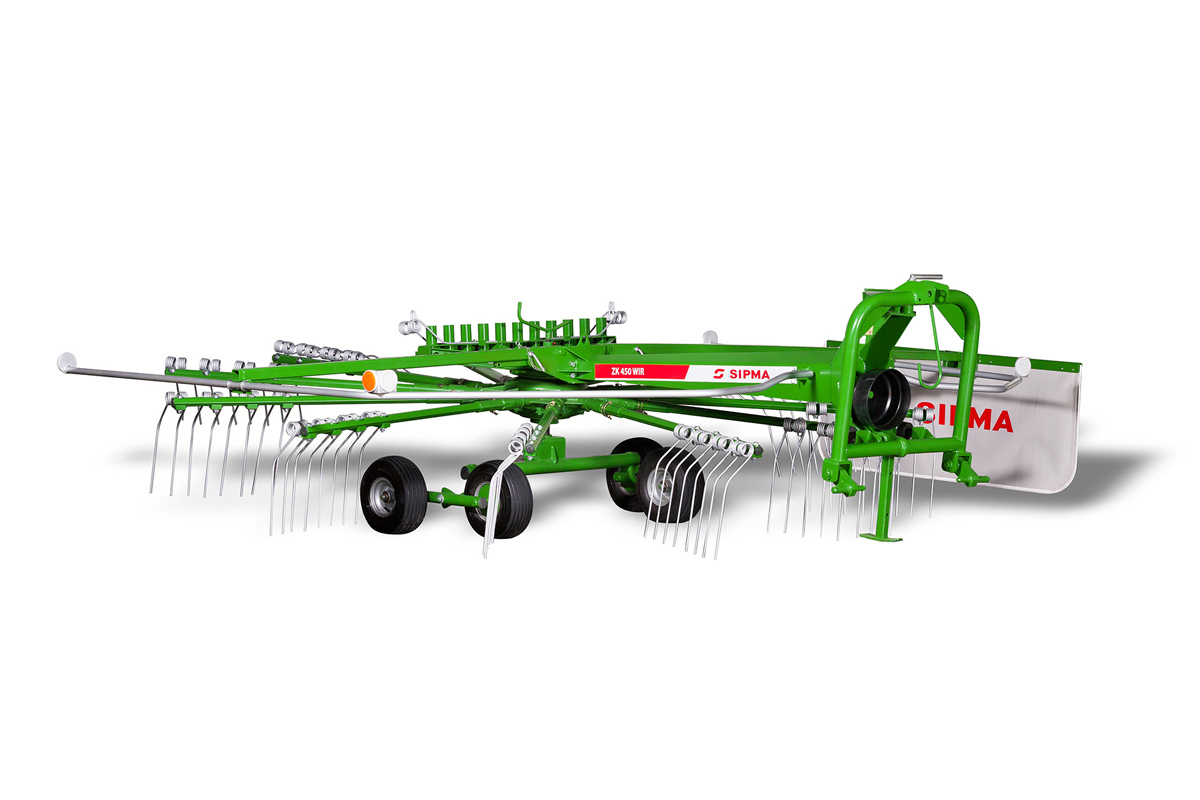

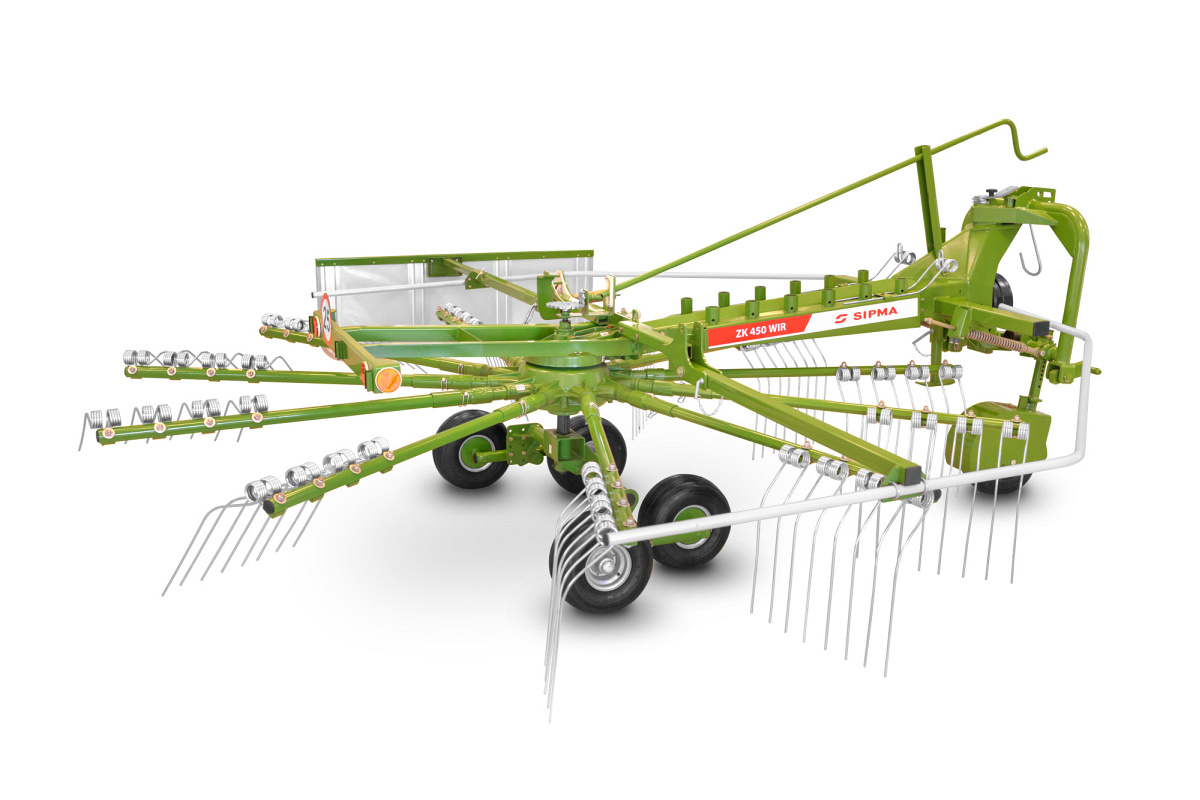

SIPMA ZK 350 WIR and SIPMA ZK 450 WIR rakes are designed to rake green fodder, dried green fodder, hay and straw.
Raking swaths is a very important element of the entire process of harvesting and conservation of green forage. Using rakes ensures obtaining a suitable quality of forage, does not damage fragile parts of grass, does not decrease their nutritional value and it significantly influences the efficiency and quality of working with the next machines in the technological line - round balers.
- Welded body with articulated fitting of the front frame allows mounting the rake on the tractor three-point linkage and ensures comfortable operation and excellent tracking of the terrain.
- Oil transmission ensures long-lasting and reliable operation.
- Raking arms with three double tines (SIPMA ZK 350 WIR) or four double tines (SIPMA ZK 450 WIR) ensure efficient raking of forage as well as uniform and permeable swaths.
- Tine loss protections (additional equipment) prevent from loss of tines when they crack.

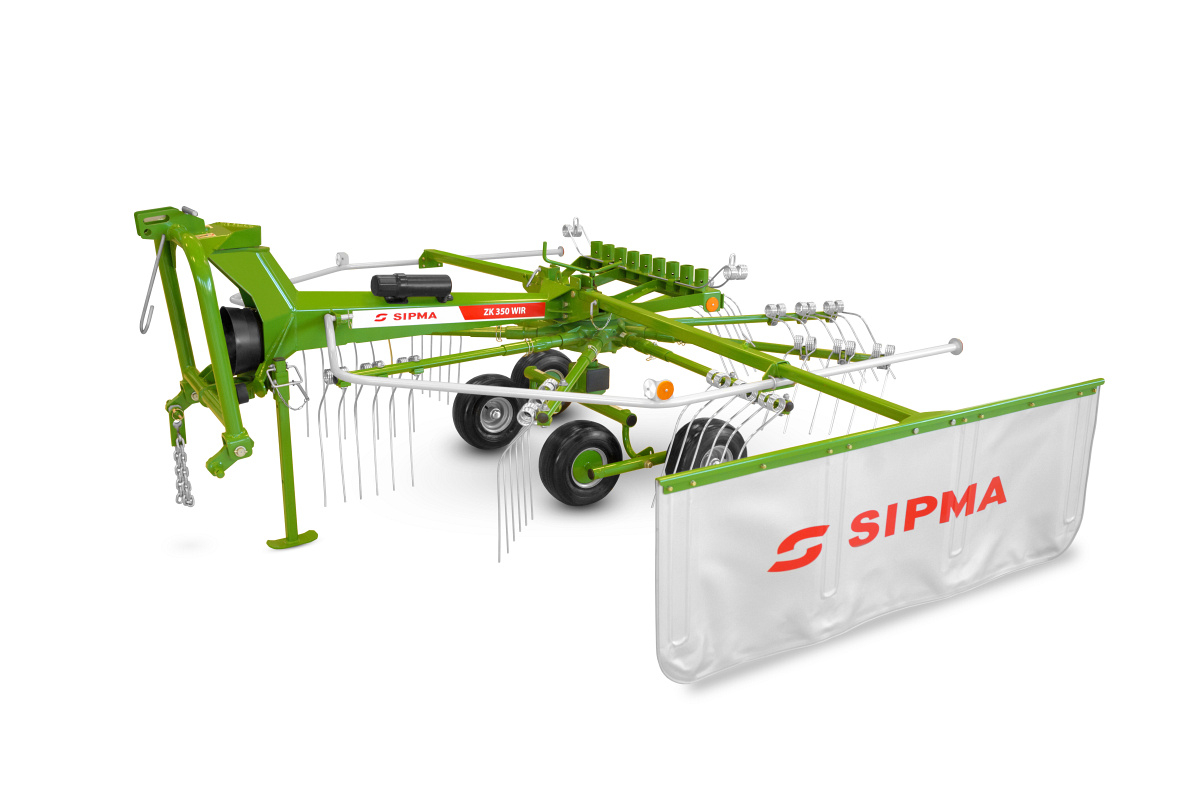

- Adjustable screen allows to set the appropriate width of the formed swaths.
- Easily accessible crank enables the stepless adjustment of the height of the raking tines from the ground.
- Wide tires ensures easy and comfortable work.

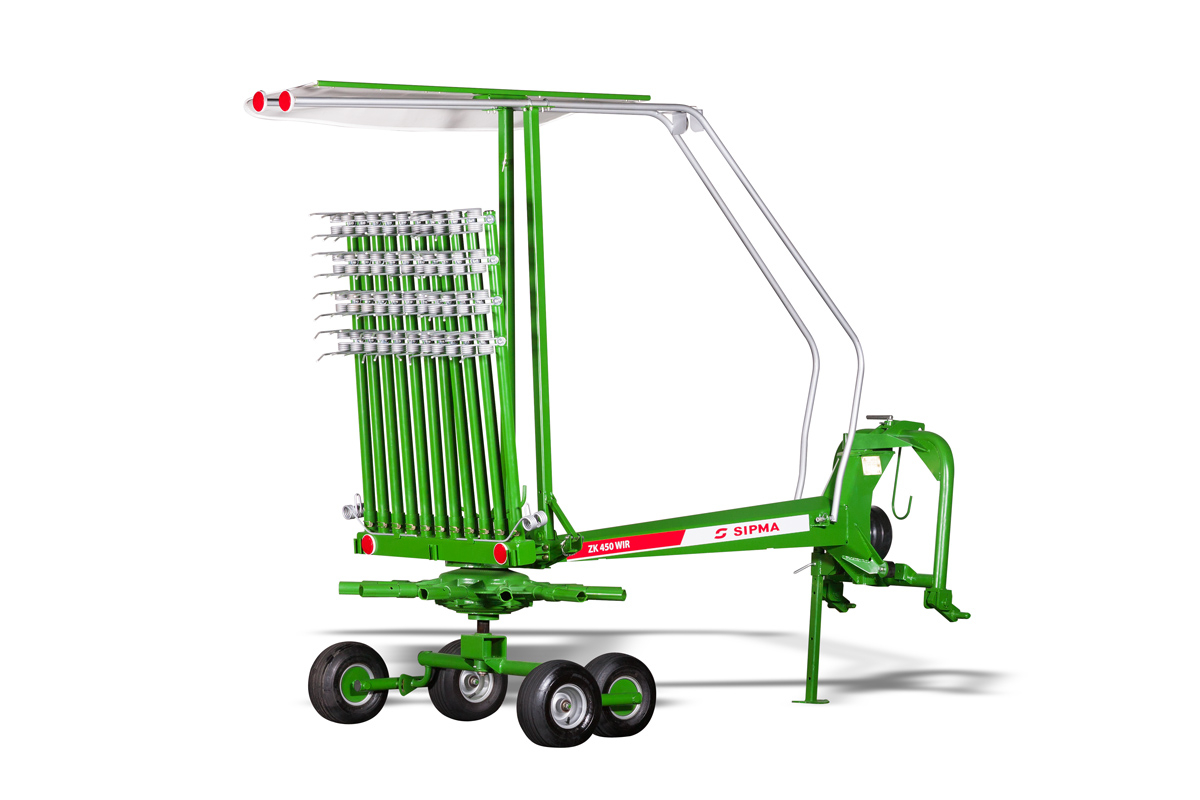

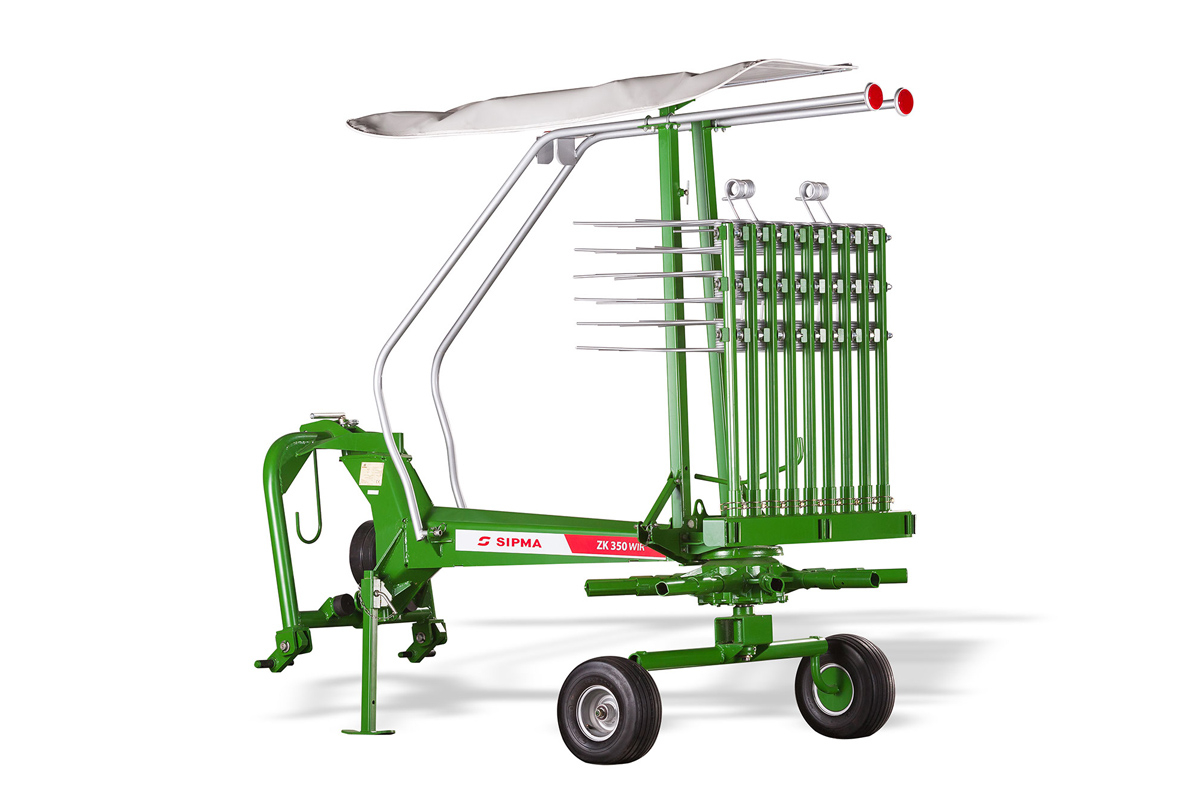

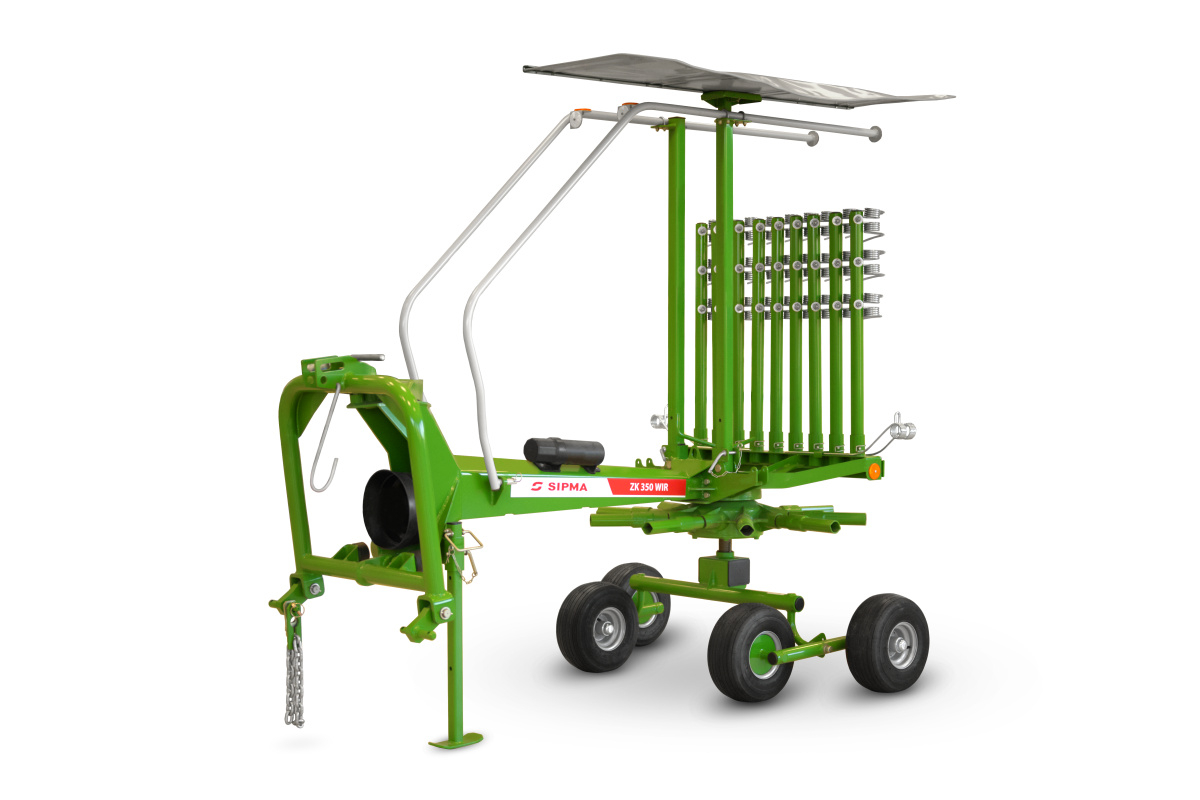

- Transport position facilitates comfortable transport and storage of the rake. Readjustment of the rake into the transport position (without the need of using any tools) is possible due to foldable raking arms and lifted safety guards.
- Tandem-type chassis prevents contamination of the forage with soil and quick wear of the tines as well as ensures accurate raking of the material. This solution is especially recommended in fields with local inequalities.
- Additional height adjustment (SIPMA ZK 450 WIR) of the tandem-type chassis allows more accurate set up of the rake’s operation height.
- Feeler wheel (SIPMA ZK 450 WIR) ensures the best mapping of the area, pure raking in difficult work conditions and it improves driving of the machine. It’s perfect for irregular surfaces - tines of rake don’t have any contact with the ground, they less wear and tear and they maintain a longer life.
Model |
ZK 350 WIR |
ZK 450 WIR |
Aggregation method |
|
mounted |
mounted |
Working width |
mm |
3500 |
4500 |
Raking bank width |
mm |
600 - 1400 |
800 - 1600 |
Number of rotors |
pcs. |
1 |
1 |
Diameter of rotors |
mm |
2625 |
3500 |
Number of raking arms |
pcs. |
9 |
11 |
Number of tines on raking arm |
pcs. |
3 |
4 |
Wheel size |
|
✖ |
✖ |
Rake set wheel size |
|
15 x 6.00 - 6 |
15 x 6.00 - 6 |
Maximum speed |
km/h |
10 |
10 |
Power demand |
kW (HP) |
25.5 (35) |
25.5 (35) |
Equipment |
|
|
|
PTO shaft |
|
● |
● |
tandem-type chassis |
|
● |
● |
feeler wheel |
|
✖ |
● |
tine loss protections |
|
○ |
○ |
Dimensions in the working position |
|
|
|
length |
mm |
3210 |
4200 |
width |
mm |
3500 |
4500 |
height |
mm |
1110 |
1200 |
Dimensions in the transport position |
|
|
|
length |
mm |
3210 |
4200 |
width |
mm |
1370 |
1620 |
height without rakes |
mm |
1200 |
1280 |
height with rakes |
mm |
1750 |
2200 |
Weight |
kg |
397 |
530 |
● - standard ○ - additional equipment ✖ - unavailable
