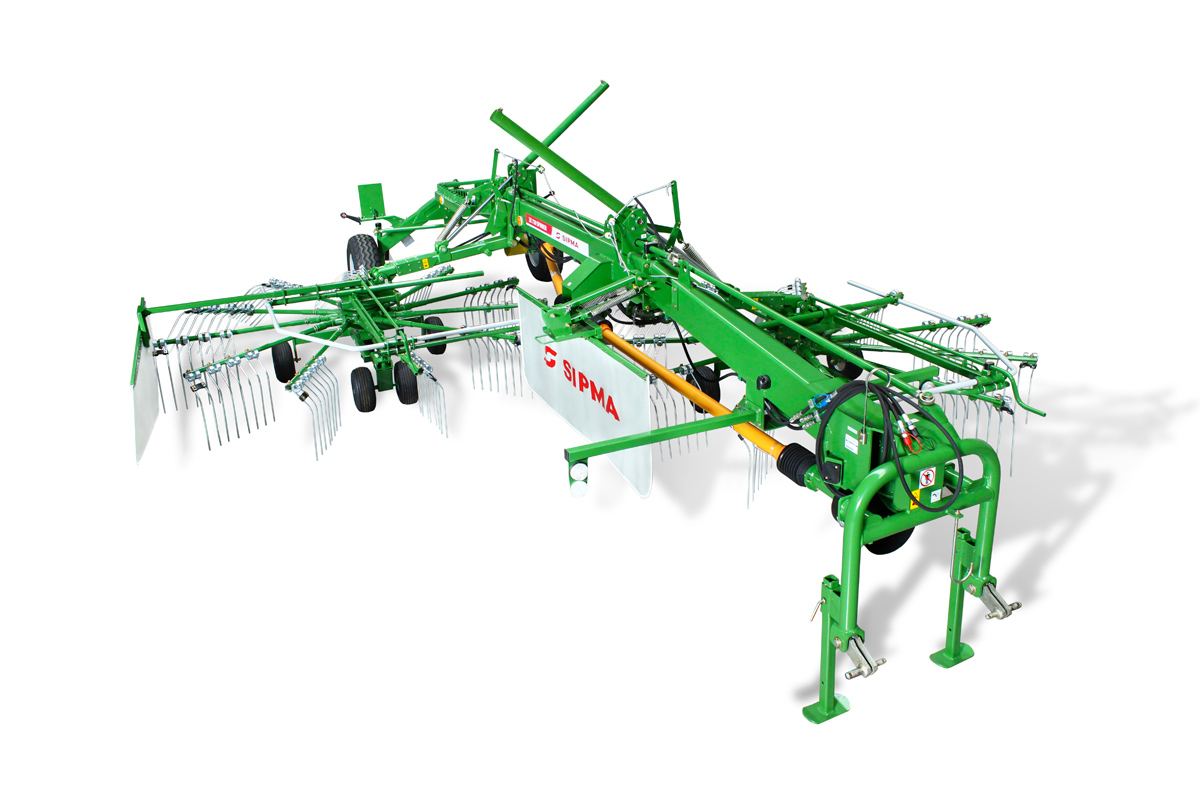

SIPMA ZK 720 SPINNER rake is equipped with two rotors with swath deposition on the side of the machine is intended to rake green forage, dried green forage, straw and hay. Construction of rakes enables to form one or two swaths.
- Working width 6.5 m in case of single swath disposal or 7.2 m in case of two swath disposal, with hydraulic adjusting of rotors.
- Support frame from closed and bent metal profiles ensures high durability and reliability during everyday exploitation. Along with front frame enable mounting rakes on tractor three-point linkage and ensure unparalleled working comfort and perfect ground following.
- Raking arms 2 x 11 pieces with 4 double raking fingers each, ensure effective raking of the swath and the arrangement of flat surfaces and airy swaths.
- 4-wheel chassis with front rotational wheels ensure smooth running and exact tracking of the terrain.
- Easily accessible crank enables the stepless adjustment of the height of the raking tines from the ground.
- Hydraulic raking height adjustment (additional equipment) allows to adjust the height of the raking tines without leaving the tractor.
- 3D ground following ensures really clean collection of raked material.
- Rear steering axle connected by rods to the articulated front frame, it ensures comfortable work at headlands.
- Spring-based rotors support enables to set optimal pressure of rotors to the ground.
- Oil transmission ensures long-lasting and reliable operation.
- Hydraulic rake folding into the transport position, up to the width of 2.83 m and height of 4 m facilitates transport on public roads without necessity to dismantling raking arms.
- Tine loss protections prevent from loss of tines when they crack.
Model |
ZK 720 SPINNER |
Aggregation method |
|
trailed |
Operational width |
mm |
6500 - 7200 |
Width of raking bank |
mm |
800 - 1500 |
Number of rotors |
pcs. |
2 |
Diameter of rotors |
mm |
3160 |
Number of raking arms |
pcs. |
11 |
Number of tines on raking arm |
pcs. |
4 |
Wheel size |
|
11,5 / 80 - 15,3 |
Rake set wheel size |
|
15 x 6.00 - 6 |
Maximum speed |
km/h |
10 |
Power demand |
kW (HP) |
52 (70) |
Equipment |
|
|
PTO shaft |
|
● |
tandem-type chassis |
|
✖ |
feeler wheel |
|
✖ |
protection against the loss of tines |
|
● |
Dimensions in the working position |
|
|
length |
mm |
7990 |
width |
mm |
6500 - 7400 |
height |
mm |
2540 |
Dimensions in the transport position |
|
|
length |
mm |
7990 |
width |
mm |
2830 |
height without rakes |
mm |
3150 |
height with rakes |
mm |
4000 |
Weight |
kg |
2150 |
● - standard ○ - additional equipment ✖ - unavailable
