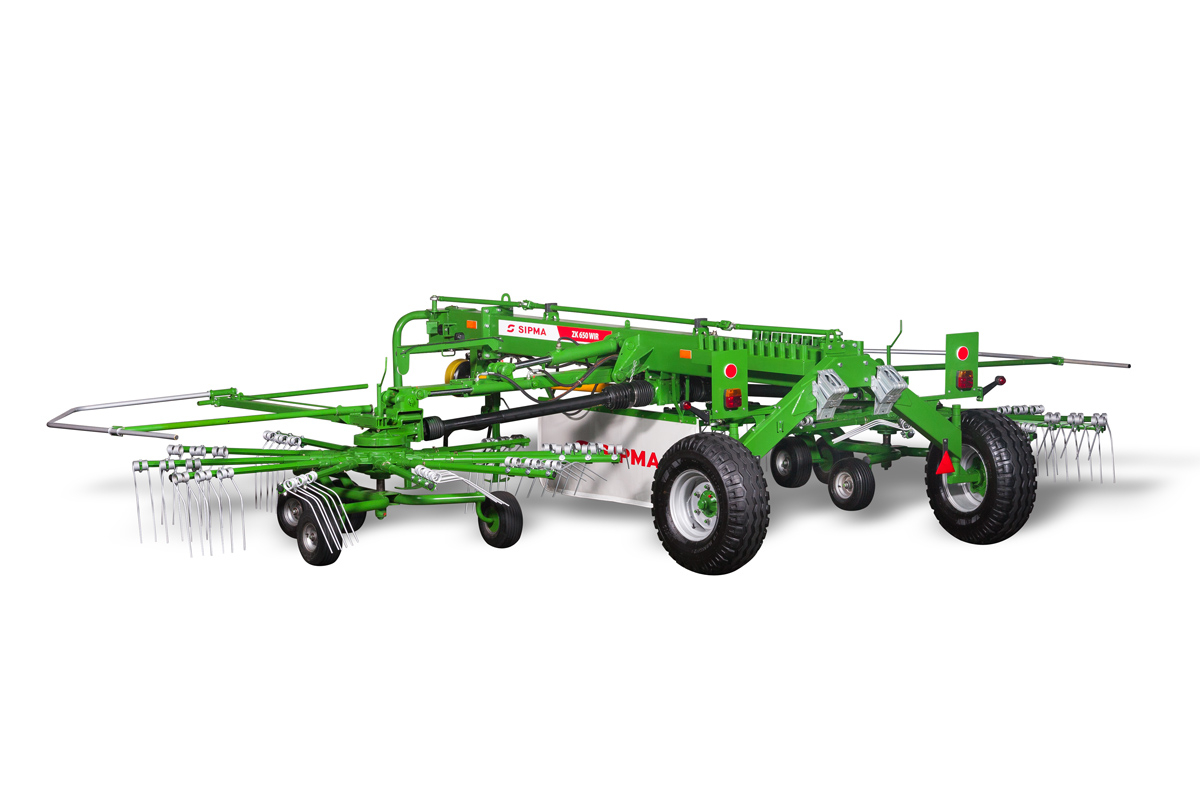

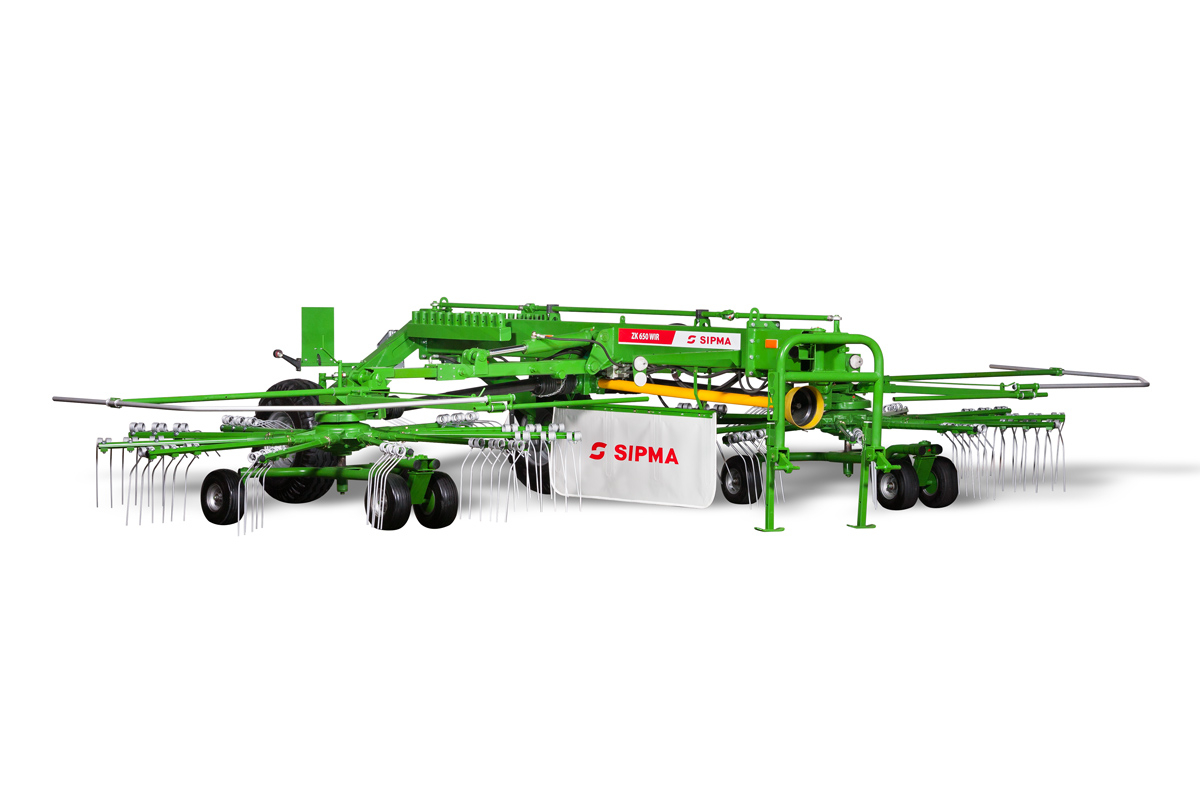

Rake SIPMA ZK 650 WIR is designed to rake the green fodder, dried green fodder, straw and hay. It has two rotors with inside layering of the forage.
Rake SIPMA ZK 650 WIR is designed to rake the green fodder, dried green fodder, straw and hay. It has two rotors with inside layering of the forage.
Raking swaths is a very important element of the entire process of harvesting and conservation of green forage. Using rakes ensures obtaining a suitable quality of forage, does not damage fragile parts of grass, does not decrease their nutritional value and it significantly influences the efficiency and quality of working with the next machines in the technological line - round balers.
Model | ZK 650 WIR | |
---|---|---|
Aggregation method | trailed | |
Operational width | mm | 6500 - 7200 |
Width of raking bank | mm | 800 - 1800 |
Number of rotors | pcs. | 2 |
Diameter of rotors | mm | 2950 |
Number of raking arms | pcs. | 11 |
Number of tines on raking arm | pcs. | 3 |
Wheel size | 11.5 / 80 - 15.3 | |
Rake set wheel size | 15 x 6.00 - 6 | |
Maximum speed | km/h | 10 |
Power demand | kW (HP) | 50 (68) |
Equipment | ||
PTO shaft | ● | |
tandem-type chassis | ● | |
feeler wheel | ✖ | |
protection against the loss of tines | ○ | |
Dimensions in the working position | ||
length | mm | 4800 |
width | mm | 6950 - 7650 |
height | mm | 1400 |

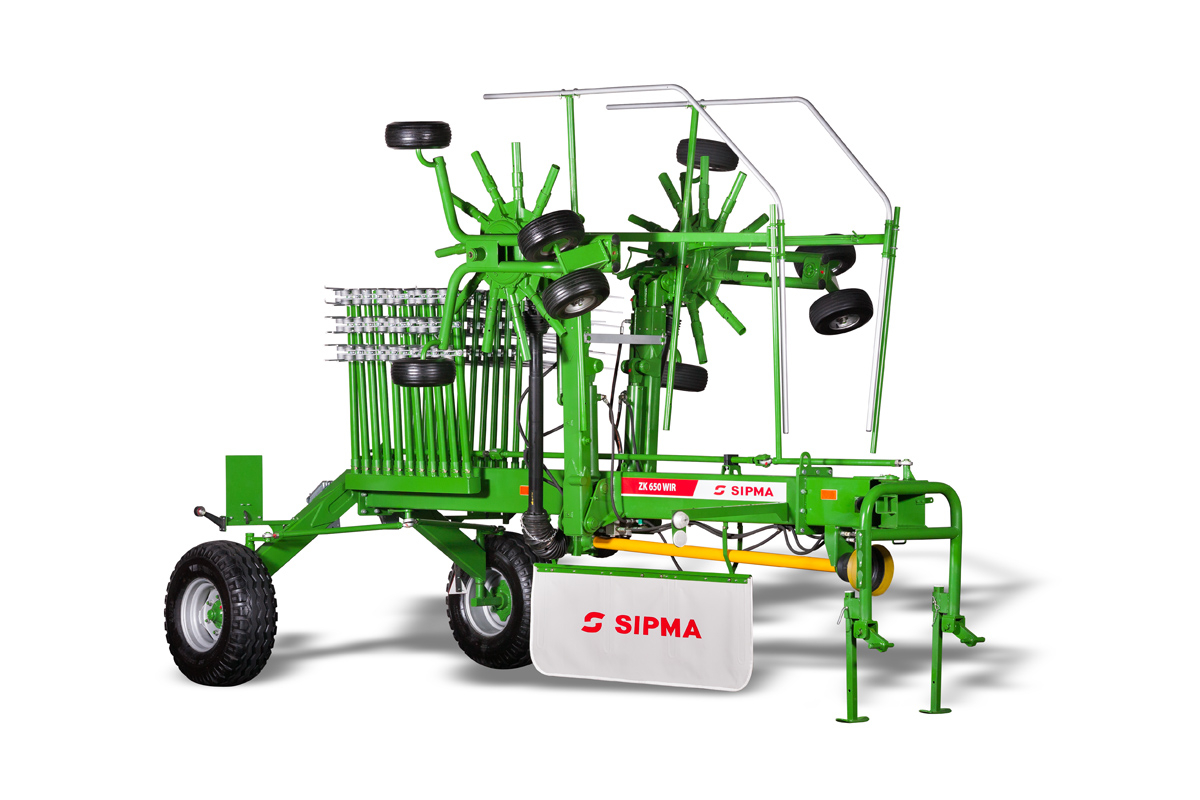

Dimensions in the transport position | ||
length | mm | 4800 |
width | mm | 2400 |
height without rakes | mm | 3280 |
height with rakes | mm | 4000 |
Weight | kg | 1500 |
