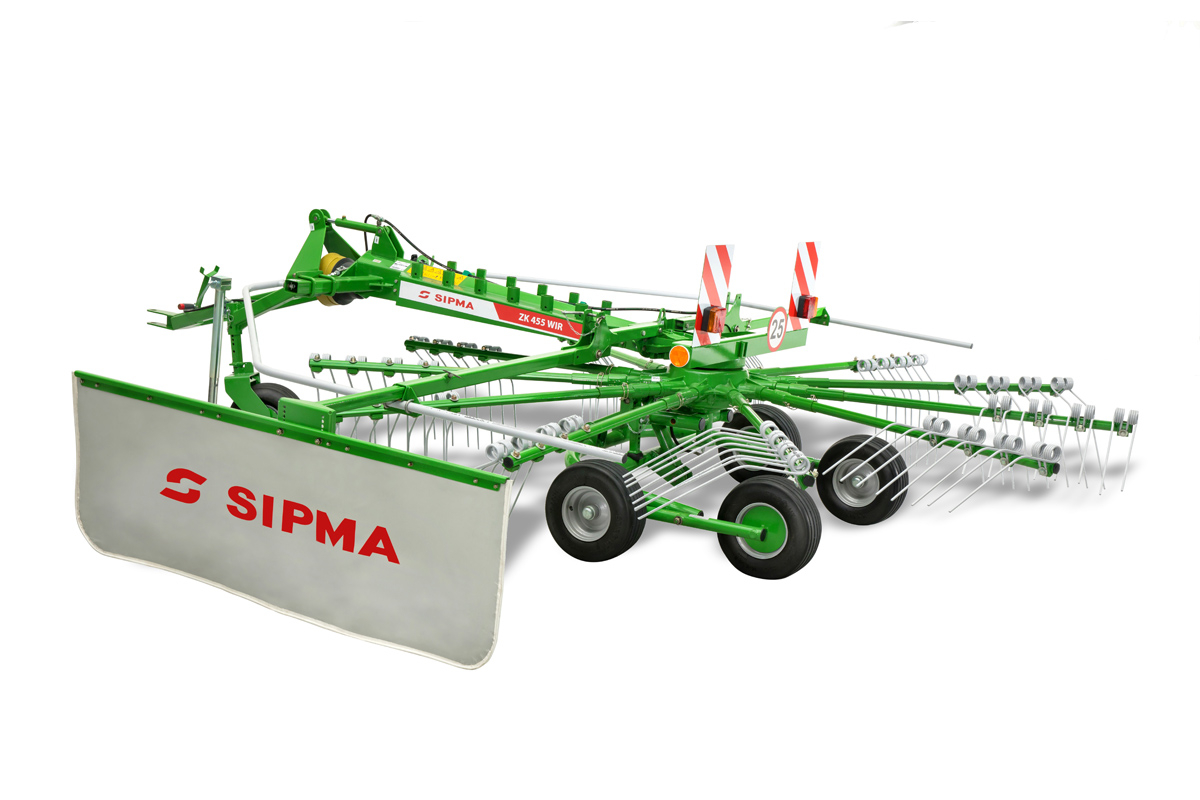

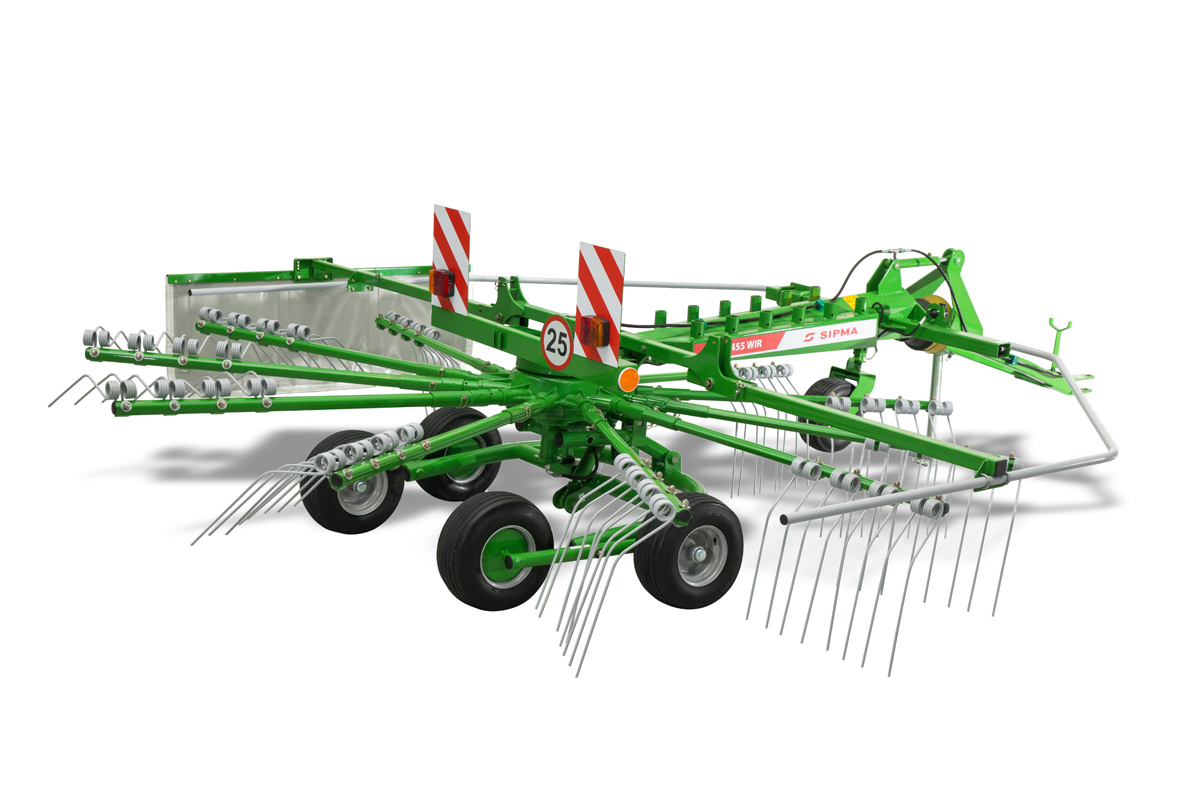

The SIPMA ZK 455 WIR trailed rake is designed for raking green forage, dried green forage, straw and hay. Designed to work at small and medium-sized farms. Characterized by a low power requirement. Lifting for transport is done hydraulically by hydraulic cylinders mounted on the drawbar and chassis.
The SIPMA ZK 455 WIR trailed rake is designed for raking green forage, dried green forage, straw and hay. Designed to work at small and medium-sized farms. Characterized by a low power requirement. Lifting for transport is done hydraulically by hydraulic cylinders mounted on the drawbar and chassis.
Raking swaths is a very important element of the entire process of harvesting and conservation of green forage. Using rakes ensures obtaining a suitable quality of forage, does not damage fragile parts of grass, does not decrease their nutritional value and it significantly influences the efficiency and quality of working with the next machines in the technological line - round balers.
Model | ZK 455 WIR | |
---|---|---|
Aggregation method | trailed | |
Operational width | mm | 4500 |
Raking bank width | mm | 800 - 1600 |
Number of rotors | pcs. | 1 |
Diameter of rotors | mm | 3500 |
Number of raking arms | pcs. | 11 |
Number of tines on raking arm | pcs. | 4 |
Wheel size | 16 x 6.50 - 8 | |
Rake set wheel size | 16 x 6.50 - 8 | |
Maximum speed | km/h | 10 |
Power demand | kW (HP) | 22 (30) |
Equipment | ||
PTO shaft | ● | |
tandem-type chassis | ● | |
feeler wheel | ● | |
protection against the loss of tines | ○ | |
Dimensions in the working position | ||
length | mm | 5220 |
width | mm | 4500 |
height | mm | 1110 |

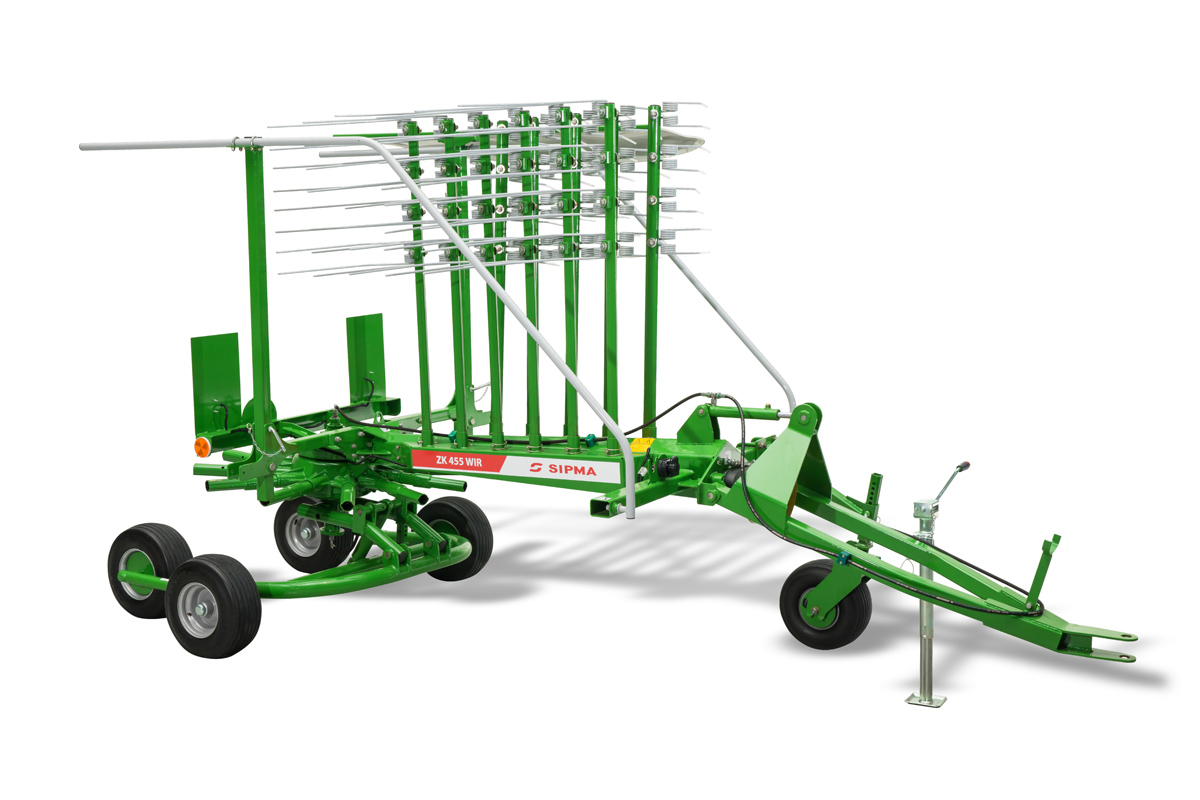

Dimensions in the transport position | ||
length | mm | 3990 |
width | mm | 1730 |
height without rakes | mm | 1680 |
height with rakes | mm | 2640 |
Weight | kg | 650 |
