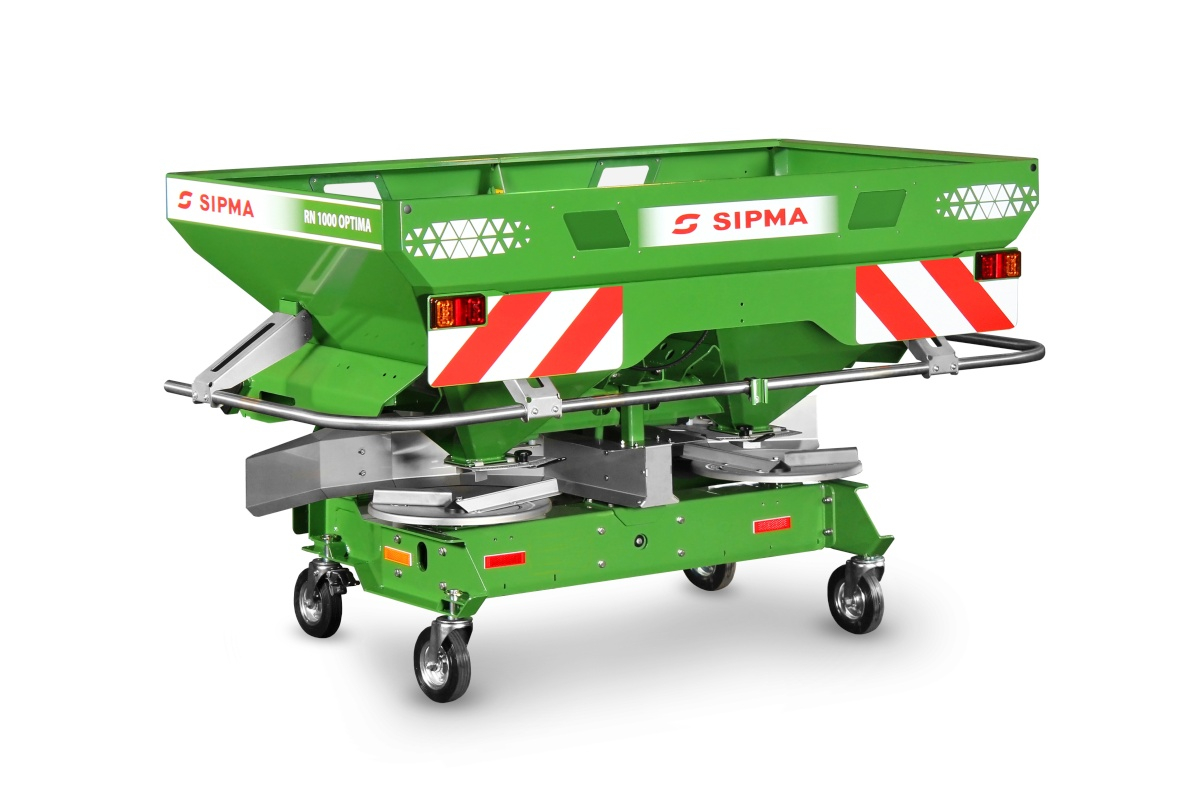

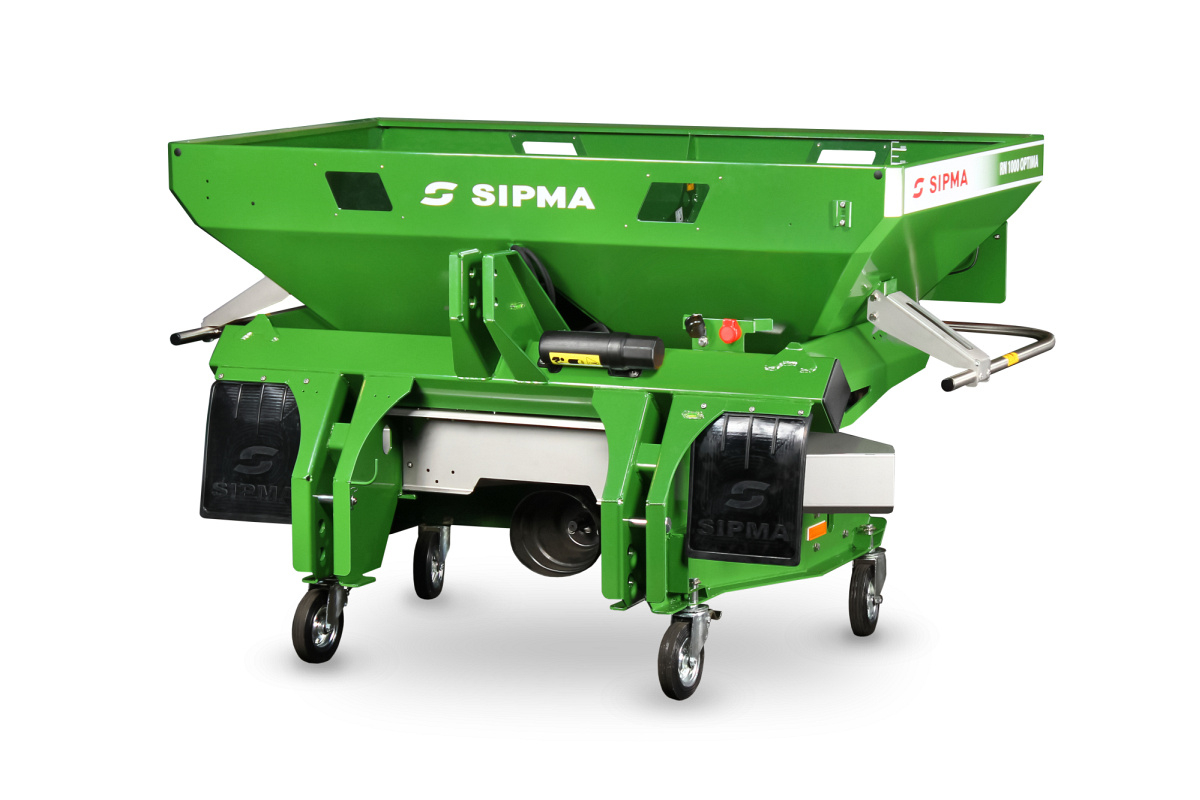

SIPMA RN 1000 OPTIMA and SIPMA RN 1000 OPTIMA PRO mineral fertilizer distributors are equipped with top solutions for precise fertilizer spreading. They ensure high working efficiency and meet the expectations of the most demanding customers.
SIPMA has a modern sowing hall where, with the help of advanced electronic equipment, sowing tables are prepared for all types of mineral fertilizer distributors on the market. SIPMA has focused the technological development on plant nutrition optimization. SIPMA offers a fertiliser spreading program that conforms to any European standards concerning accurate spreading and border spreading.
- Robust frame construction allowing easy and quick aggregation to the tractor, optimally adapted to the spreader’s capacity. It guarantees long-lasting and reliable spreader operation.
- Sowing system made entirely of stainless steel, it ensures that fertiliser is evenly metered onto the spreading discs and precisely distributes the fertiliser over the field surface.
- Ergonomics of use:
- low filling height;
- tool-free rate and working width adjustment systems;
- hopper filling scale with large inspection holes;
- set of blades for lower spreading range;
- calibration test kit and spreading tables.
- LIMES boundary seeding system mechanically or electronically controlled (additional equipment) allows work to be carried out at field boundaries in accordance with fertiliser regulations, while ensuring that the correct application rate is delivered right up to the field boundary, and eliminates economic losses resulting from over-fertilisation or the spreading of fertiliser to neighbouring fields. Used when the first tramline lies in the middle of the spreader’s working width. Made of stainless steel.
- Resilient pendulum stirrer ensures an even flow of fertilizer to the spreading discs.
- Border spreading discs (additional equipment) enable fertiliser to spread at the edge of the field. Made of stainless steel.
- Hydraulic seed control the dual metering and closing gate system is operated independently for both sides, with the possibility of controlling both closing gates simultaneously. Double-acting slide gates can be quickly opened and closed at the ends of the field using a distributor.
- Shut-off valve (standard equipment) preventing the sliders from opening during travel when the tractor hydraulics are not functioning correctly.
- Shape of the agitator guaranteeing that fertiliser is taken up from the entire width of the hopper.
- Fine mesh sieves fitted to the tank protect the spreader against clumped fertiliser or dirt entering the spreading area. For cleaning, the machines easily tilt upwards and lock into place.
- Working parts made of stainless steel (spreader discs, vanes, hopper bottom sliders and guards) guarantee long-lasting and reliable spreader operation.
- Rack stand cover (additional equipment) mounted on the hopper makes spreader operation independent of weather conditions. Opening by means of a lever, lockable by means of rubber straps. bolted construction to save transport space and reduce shipping costs.
- Roll-up cover (additional equipment) ensures maximum fertiliser protection during rainfall while guaranteeing a maximum opening during filling. Opening by means of a lever, lockable by means of rubber straps. bolted construction to save transport space and reduce shipping costs.
- Extensions (additional equipment) are easily mounted on the main hopper and allow the hopper capacity to be adjusted as required, making the spreader suitable for use on both small and large areas. Simple assembly to the basket, bolted construction which saves transport space and reduces shipping costs.
- LED road lighting and warning signs improve safety and increase visibility for road users in all conditions. Eliminates the need for portable lighting when the spreader blinds the tractor lights.
- Weight system (only in SIPMA RN 1000 OPTIMA PRO) allows precise dosage of mineral fertilizer spreading, while also contributing to savings for the farm and protection of the environment.
- Lateral gearboxes with torsionally flexible clutches supervise the operation of fertilizer spreading according to the set working parameters.
- Spreader hopper with welded construction for low filling height, made of 3 mm thick steel.
- Spreading discs equipped with two pairs of blades, allow fertiliser spreading in working widths of 18 - 32 m.
- Machine tilt indicators help to position the spreader in the correct position in relation to the ground.
- Mud flaps protect the tractor from contact with the newly seeded fertilizer, at the same time preventing mud from under the tractor wheels from getting onto the spreader’s working parts.
- Transport wheels facilitating disconnection of the spreader and manoeuvring around the yard; equipped with brakes.
- Electronic controller (additional equipment) (only in SIPMA RN 1000 OPTIMA) supervises fertiliser spreading according to the set operating parameters.
- Functions of the electronic controller:
- electronic speed-dependent seed rate control. The set application rate is always the same after changing the working speed;
- manual or automatic spreading mode;
- measurement of driving speed by means of a GPS module in automatic mode;
- control of metering sliders;
- determining the dosing aperture based on selected parameters;
- speed programming in manual mode;
- half-seeding possible;
- the possibility of adjusting the dosage while driving;
- the possibility of conducting a spin test;
- measurement of acreage sown and hours worked;
- bin emptying function;
- activation of border sowing with one-sided reduced rate; operation of LIMES border sowing system;
- supports many languages.
- Electronic controller with ISOBUS (additional equipment) (only in SIPMA RN 1000 OPTIMA PRO) supervises fertiliser spreading according to the set operating parameters.
- Functions of the electronic controller:
- electronic speed-dependent seed rate control. The set application rate is always the same after changing the working speed;
- measurement of driving speed by means of a GPS module / ISOBUS socket (speed from tractor) in automatic mode;
- control of metering sliders;
- determining the dosing aperture based on selected parameters;
- half-seeding possible;
- the possibility of adjusting the dosage while driving;
- the possibility of conducting a spin test;
- measurement of acreage sown and working hours;
- emptying hopper function;
- activation of border sowing with one-sided reduced rate;
- operation of LIMES border sowing system;
- ISOBUS solution;
- weight system control;
- weighing system control;
- independent application rate metering to the left/right disc;
- dynamic calibration - correction of fertilizer application rate based on information from the weight system during seeding;
- automatic switching on/off of the machine depending on its position in the field, especially on headlands, entrances, exits and wedges;
- automatic switching of the spreader at headland location and field edges;
- option to create field boundaries based on the first tour of the field;
- automatic recognition of the scattered field area;
- GPS parallel driving function - driving control by means of indicators on the display;
- field map upload function;
- variable rate function;
- large, intuitive, touch-screen color display;
- supports many languages.
Model |
|
RN 1000 OPTIMA |
RN 1000 OPTIMA PRO |
Working width |
m |
18 - 32* |
18 - 32* |
Hopper capacity |
l |
1000 |
1000 |
with extension 1 x 500 l / 2 x 500 l |
l |
1500 / 2000 |
1500 / 2000 |
Maximum load capacity |
kg |
2300 |
2300 |
Filling height |
m |
1,12 |
1,12 |
with extension 1 x 500 l / 2 x 500 l |
m |
1,33 / 1,54 |
1,33 / 1,54 |
Filling width |
m |
2,00 |
2,00 |
Total width |
m |
2,30 |
2,30 |
Total length |
m |
1,47 |
1,47 |
Rotation speed of the spreading discs |
rpm |
720 |
720 |
Frame linkage |
|
3 suspension heights Cat. II |
3 suspension heights Cat. II |
Basic machine weight |
kg |
440 |
480 |
Control |
|
|
|
Lever-operated hydraulic control |
|
● |
✖ |
shut-off valve |
|
● |
✖ |
dose adjustment |
|
manual |
✖ |
half-machine seeding cut-off |
|
● |
✖ |
Electronic controller - ARETE |
|
○ |
✖ |
speed measurement |
|
manual / GPS |
✖ |
GPS antenna |
|
● |
✖ |
controller (display) |
|
monochromatic |
✖ |
half-machine seeding cut-off |
|
● |
✖ |
Electronic controller - ISOBUS |
|
✖ |
● |
speed measurement |
|
✖ |
manual / ISO socket / GPS |
ISO socket |
|
✖ |
● |
GPS antenna |
|
✖ |
○ |
ISOBUS |
|
✖ |
● |
cable to the tractor terminal |
|
✖ |
● |
controller |
|
✖ |
○ |
controller (display) |
|
✖ |
color - touchscreen |
weight system |
|
✖ |
● |
variable section dosage |
|
✖ |
● |
half-machine seeding cut-off |
|
✖ |
● |
Equipment |
|
|
|
PTO shaft with with shear wheel |
|
● |
● |
PTO shaft with overload clutch |
|
○ |
○ |
position indicator |
|
● |
● |
mud flaps |
|
● |
● |
transport wheels |
|
● |
● |
LED road lighting |
|
● |
● |
calibration kit |
|
● |
✖ |
extension |
|
○ |
○ |
rack stand cover |
|
○ |
○ |
roll-up cover |
|
○ |
○ |
border spreading discs |
|
○ |
○ |
LIMES boundary seeding system - mechanical |
|
○ |
✖ |
LIMES boundary seeding system - electronic |
|
○ |
○ |
● - standard ○ - additional equipment ✖ - unavailable
* - depending on the spreading blades and fertilizer spread
