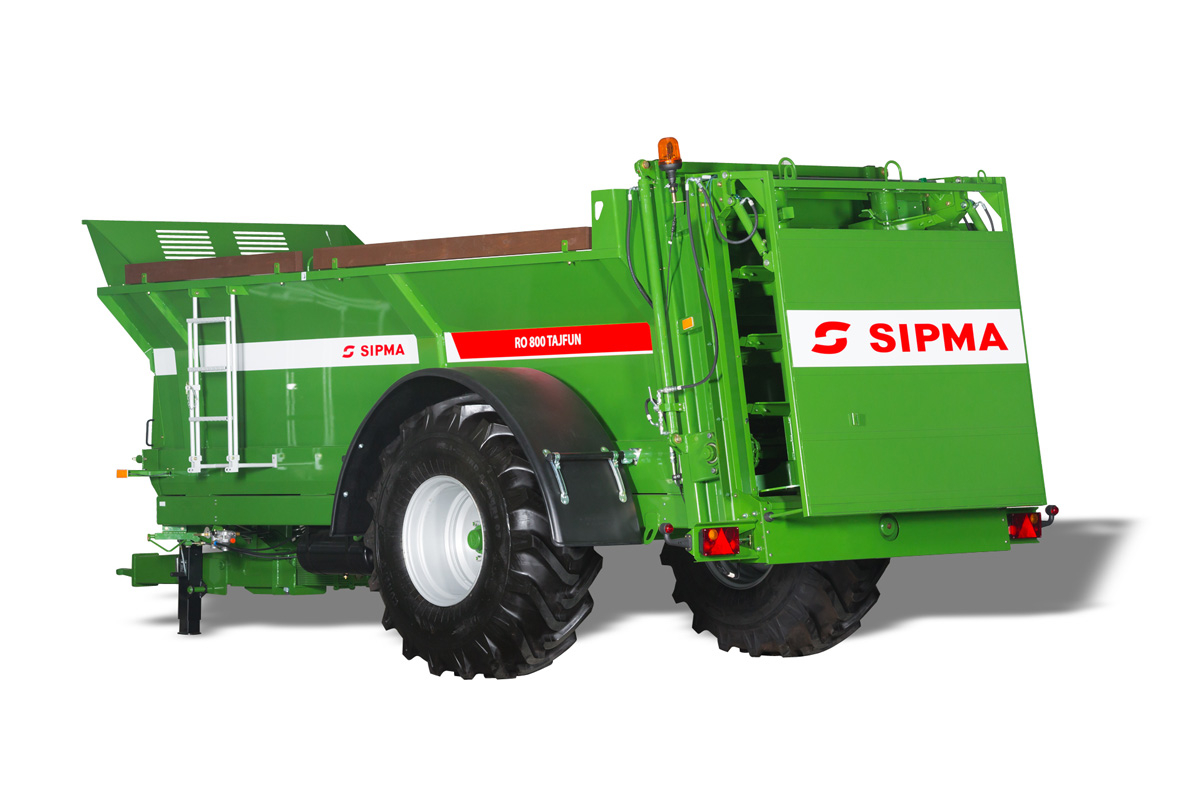

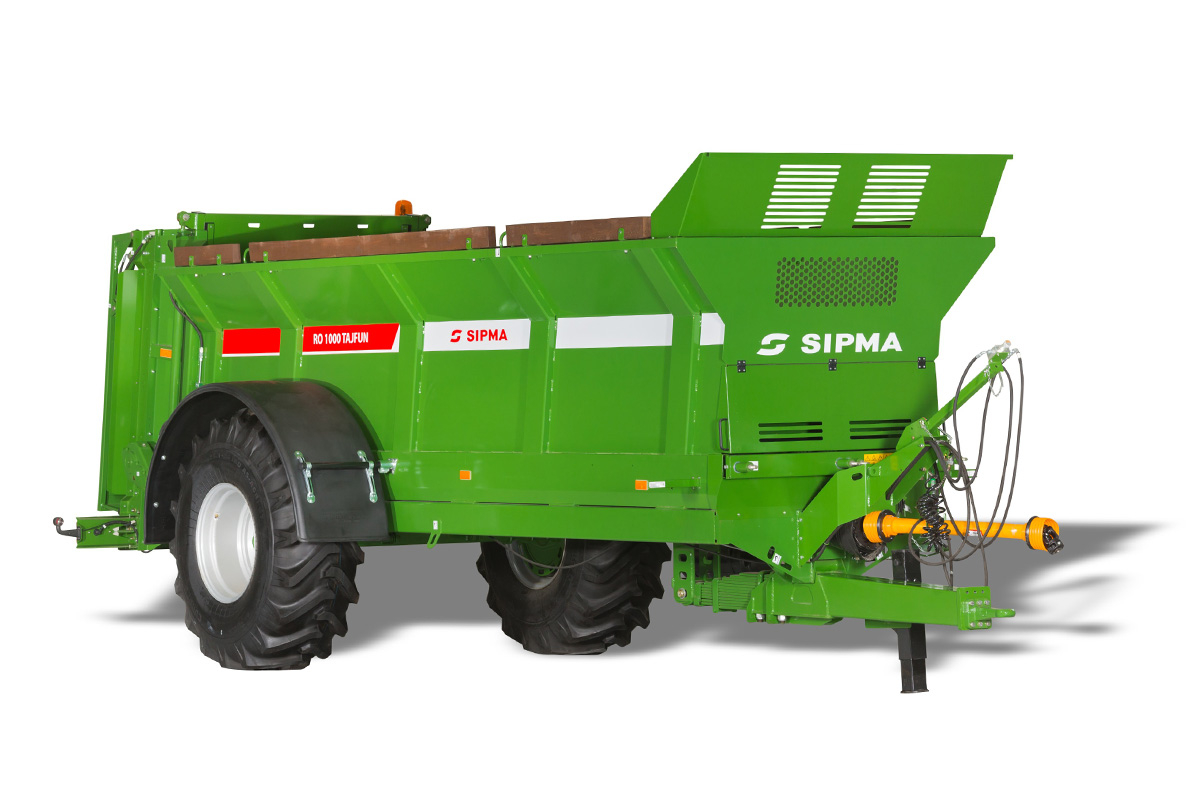

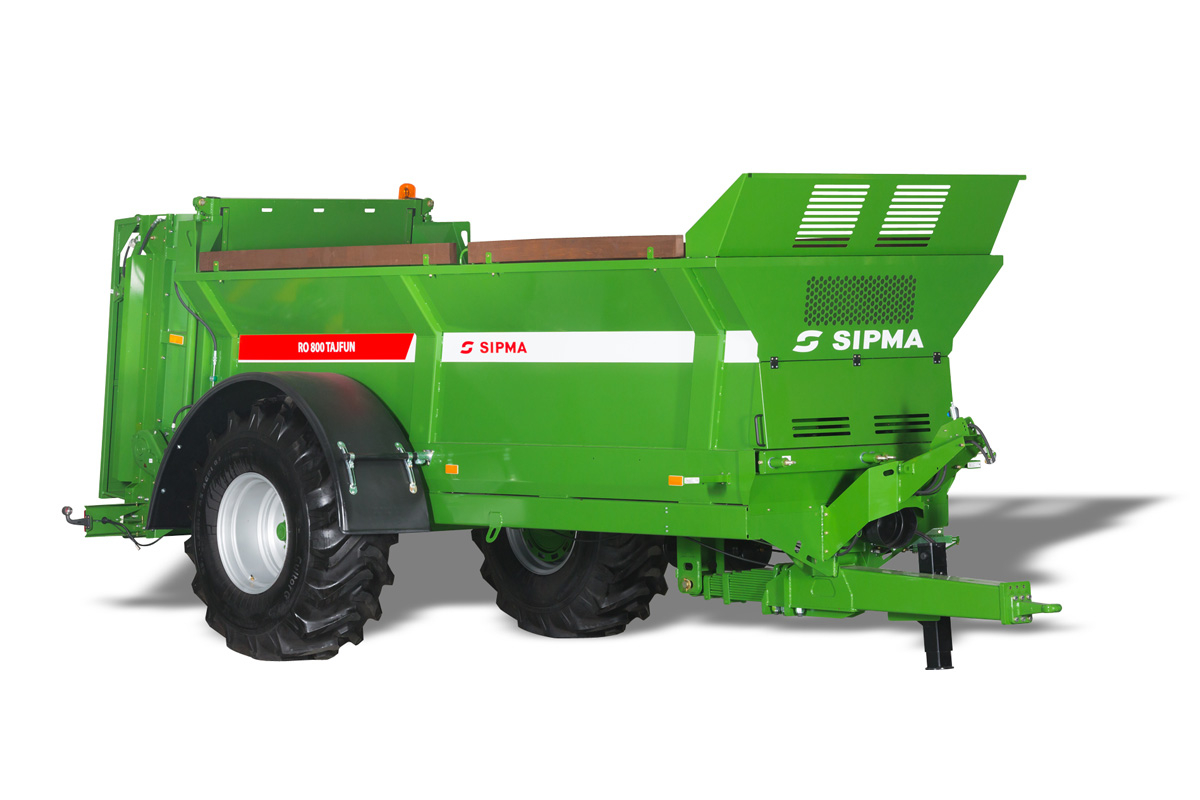

Manure spreaders - SIPMA RO 600 TAJFUN, SIPMA RO 800 TAJFUN, SIPMA RO 1000 TAJFUN

SIPMA RO 600 TAJFUN, SIPMA RO 800 TAJFUN and SIPMA RO 1000 TAJFUN are used for spreading manure, compost, peat, chicken manure and lime. They can also be used for transport of agricultural commodities after removing the adapter. They are compatible with tractors equipped with a bottom “hitch” type latch and are fully adapted for transport on public roads.

Manure spreaders - SIPMA RO 600 TAJFUN, SIPMA RO 800 TAJFUN, SIPMA RO 1000 TAJFUN
Manure spreaders - SIPMA RO 600 TAJFUN, SIPMA RO 800 TAJFUN, SIPMA RO 1000 TAJFUN
Manure spreaders - SIPMA RO 600 TAJFUN, SIPMA RO 800 TAJFUN, SIPMA RO 1000 TAJFUN

SIPMA RO 600 TAJFUN, SIPMA RO 800 TAJFUN and SIPMA RO 1000 TAJFUN are used for spreading manure, compost, peat, chicken manure and lime. They can also be used for transport of agricultural commodities after removing the adapter. They are compatible with tractors equipped with a bottom “hitch” type latch and are fully adapted for transport on public roads.

  • General purpose adapter equipped with bottom plates allows for spreading manure, compost, peat, chicken manure and lime.
  • Electronic control (additional equipment) provides convenient control of the machine from the tractor cabin.
  • Low loading height facilitates comfortable work.
  • Two-beaters vertical auger adapter with cutting knives ensures high fragmentation of the spread material as well as a large range and uniformity of spreading.
  • Adapter knives made from HARDOX steel ensure durability of the construction and reliable operation.
  • Hydraulically opened rear flap closes the load box to prevent the load from falling out during transport.
  • Wooden protective extensions protect the side panels against mechanical damage, during loading.
  • Double floor conveyor with an automatic tensioning mechanism is hydraulically driven, what ensures stepless adjustment of the quantity of the spread material.
  • Sprung drawbar (additional equipment) equipped with longitudinal spring leaves provides high comfort of usage.
  • Tyres guarantee low rolling resistance and pressure exerted on the ground, which facilitates operation and movement on wet terrain. Selfcleaning tyres ensure convenient operation of the spreader.
  • Overload clutch secures the drive unit in case of potential clogs.
  • Rear adapter cover (additional equipment) required during driving on the public roads.
  • Mechanical/hydraulic deflectors (additional equipment) ensure protection of the adapter during transport and adjust spreading width during work.
  • Inspection ladder provides a safe view of the load compartment.
  • Front shields they protect the tractor cab from dirt and any possible damage.
  • Gate and box seals resistant to dilute acids and alkalis, they ensure a durable design and reliability in operation.
  • Rotor movement signalling system warns bystanders of rotating components when the machine is stationary.
  • Wide lower blades they enable the spreading of lime.
  • Mudguards they protect the machine from dirt, ensuring it runs cleaner and more efficiently.
  • Docking points for hydraulic, electrical and pneumatic hoses protecting their connector from contamination, they ensure ergonomic use of the machine.
Model   RO 600 TAJFUN RO 800 TAJFUN RO 1000 TAJFUN
Nominal load t 6 8 10
Capacity m3 7 9 11
Spreading width m 7,5 - 10 5 - 12 5 - 12
Dose of spread material kg/s 5 - 60 5 - 60 5 - 60
Number of spreading beaters pcs. 2 2 2
Suspension   rigid rigid rigid
Number of axles   1 1 1
Maximum speed km/h 25 25 25
Power demand kW (HP) 55 (75) 65 (88) 75 (102)
Equipment
    wide angle PTO shaft
    electronic control
    electric control of floor conveyor
    rigid drawbar
    spring drawbar
    1-wire brake system
    2-wires brake system
    handbrake
    hydraulic opened rear flap
    hydraulic reverse of the floor
    road lights (electric installation)
    inspection ladder
    wooden protective extensions
    rear adapter cover
    deflectors (mechanical / hydraulic)
    tyres 23,1 - 26 18 PR
    fenders
Dimensions
    length mm 7680 7680  8330
    width mm 2520 2520 2520
    height mm 2660 2970 3090
    loading height mm 2250 2310 2500
Weight kg 4250 4560 4680
- standard     - additional equipment    ✖ - unavailable
