Grain crushers are designed for crushing grains of all types of crops (barley, oat, wheat, rye) and leguminous plants for feed concentrates and such grains as corn, pea, linen.
- Modern technology of crushed grain fodder processing has numerous advantages over the grinding method and allows obtaining high-quality fodders.
- Crushing process ensures nutritive absorption at the level of 95% (compared to only 70% of ground fodder) and significantly reduces the electrical power demand in comparison to grinding. The use of this method ensures obtaining low content of dusty fractions.
- Body design ensures high tightness of the crusher and enables precise assembly of working elements.
- Cast iron or steel crushing rollers with notches ensure high efficiency as well as durability and reliability of the device.
- Adjustable foot height (in TYTAN series) allows for easier feeding of the material into the charging hopper or placement of a larger container under the crusher.
- Three crushing rollers system allows for crushing large grains in one run (corn, field beans, peas, field peas).
- Working port adjustment mechanism allows for precise adjustment of the working gap and preserves the optimal position of the crushing rollers.
- Magnet cartridge protects the crusher mechanism from unwanted metal or stones parts.
- Possibility to attach a bagging machine (additional equipment in ATLAS series) and a loading chute.
- Grain dosing adjustment allows for adjusting the amount of charged grain to the working gap size.
- Two methods of drive transmission between the working rollers:
- transmission belts (ATLAS series);
- gears (TYTAN series).
- In order to meet the customer demand we offer 9 models of crushers with different parameters and features as follows:
- efficiency;
- number and width of crushing rollers;
- engine power;
- working port adjustment method;
- drive transmission method;
- harge into the automatic line assembly.
Model |

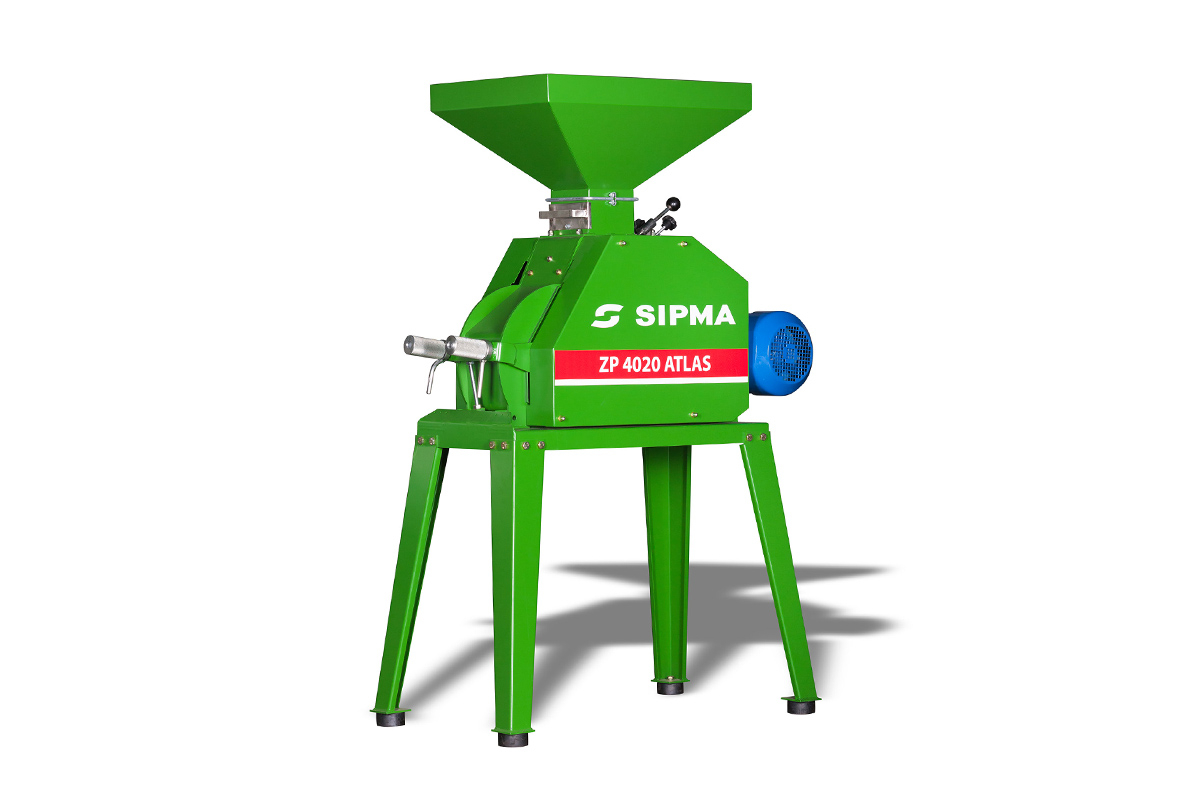

ZP 4020 ATLAS |

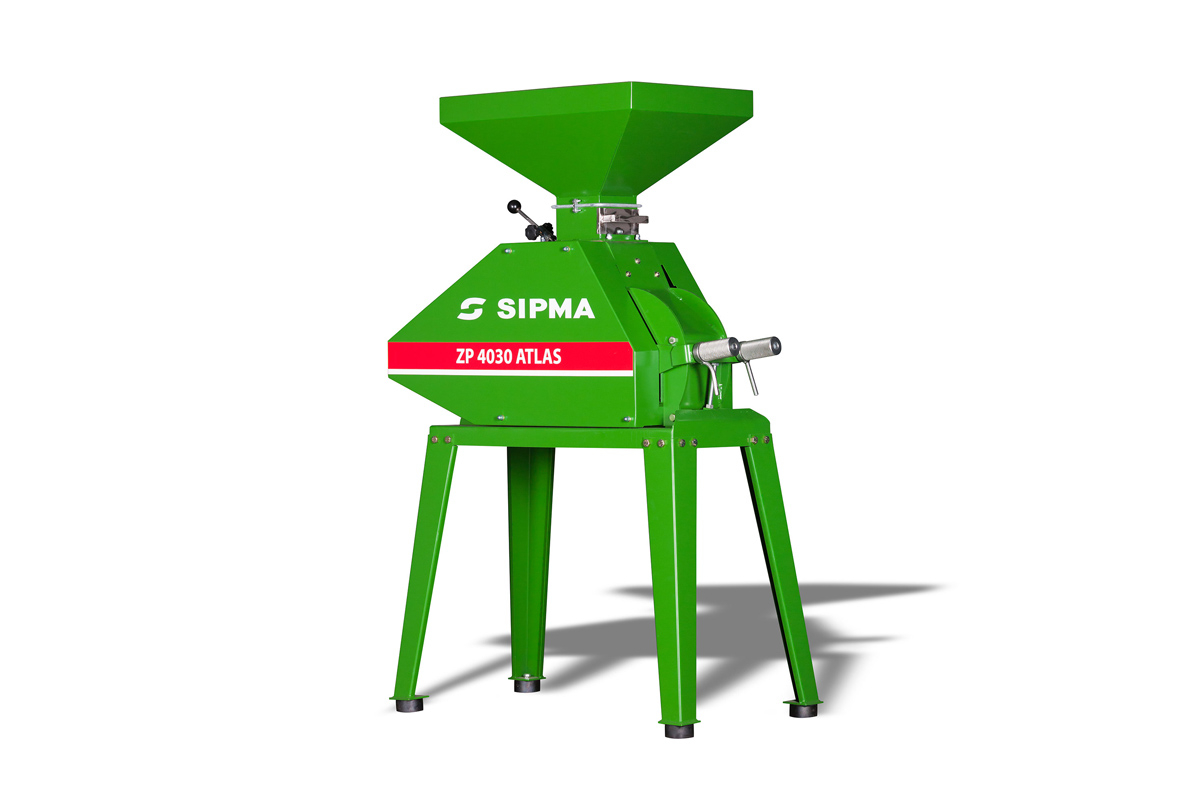

ZP 4030 ATLAS |
ZP 5520 ATLAS |
ZP 5530 ATLAS |
ZP 7530 ATLAS |
ZZ 4020 TYTAN |
ZZ 7520 TYTAN |

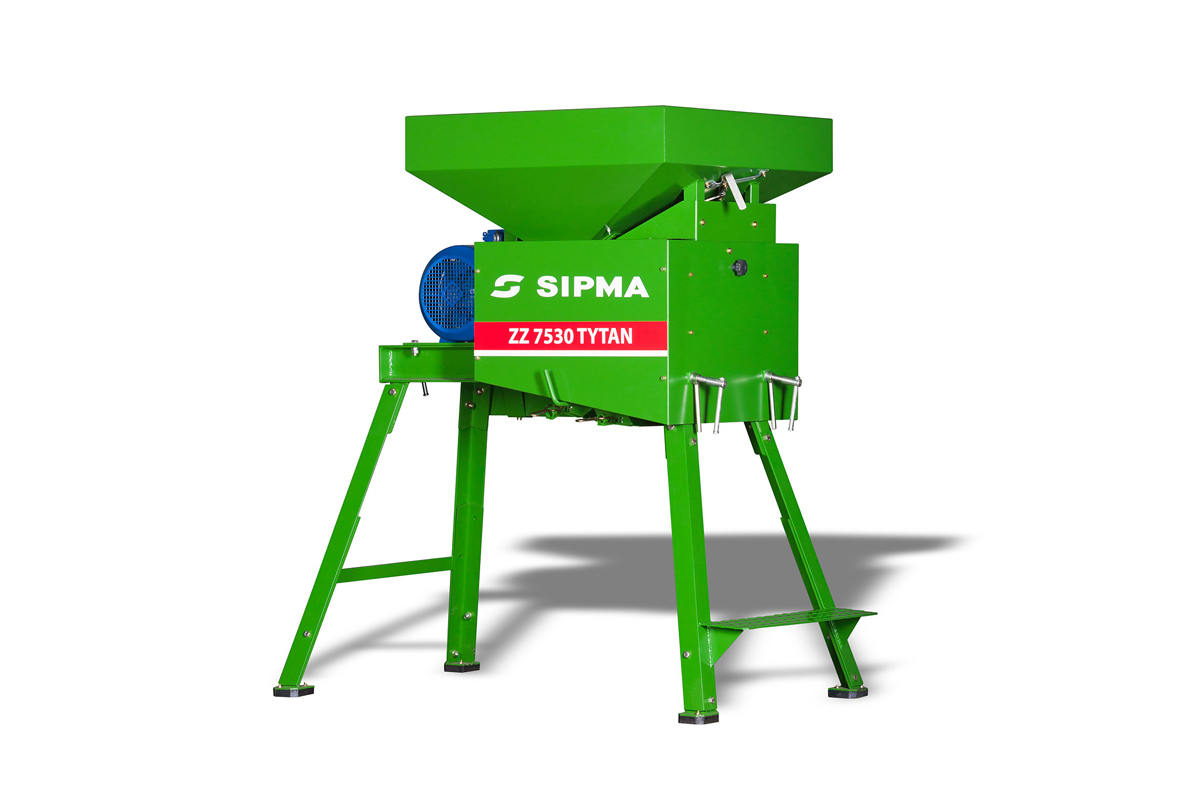

ZZ 7530 TYTAN |
Engine power |
HP |
4 |
4 |
5,5 |
5,5 |
7,5 |
4 |
7,5 |
7,5 |
Number of rollers |
pcs. |
2 |
3 |
2 |
3 |
3 |
2 |
2 |
3 |
Width of roller |
mm |
160 |
160 |
200 |
200 |
300 |
150 |
300 |
300 |
Diameter of roller |
mm |
290 |
290 |
290 |
290 |
290 |
240 |
240 |
240 |
Working port |
mm |
0,1 - 0,5 |
0,1 - 0,5 |
0,1 - 0,5 |
0,1 - 0,5 |
0,1 - 0,5 |
0,1 - 0,5 |
0,1 - 0,5 |
0,1 - 0,5 |
Initial crushing port |
mm |
✖ |
3 - 4 |
✖ |
3 - 4 |
3 - 4 |
✖ |
✖ |
4 |
Equipment |
|
|
|
|
|
|
|
|
legs (750 mm) |
|
● |
● |
● |
● |
● |
✖ |
✖ |
✖ |
adjustable legs (680 - 950 mm) |
|
✖ |
✖ |
✖ |
✖ |
✖ |
● |
✖ |
✖ |
adjustable legs (700 - 950 mm) |
|
✖ |
✖ |
✖ |
✖ |
✖ |
✖ |
● |
✖ |
adjustable legs (750 - 950 mm) |
|
✖ |
✖ |
✖ |
✖ |
✖ |
✖ |
✖ |
● |
bag mounting |
|
○ |
○ |
○ |
○ |
○ |
● |
● |
● |
Dimensions |
|
|
|
|
|
|
|
|
|
length |
mm |
1240 |
1240 |
1200 |
1200 |
1200 |
1350 |
1350 |
1520 |
width |
mm |
640 |
620 |
710 |
710 |
780 |
850 |
870 |
910 |
height |
mm |
2000 |
2000 |
1800 |
1800 |
1800 |
1380 |
1420 |
1580 |
Weight |
kg |
250 |
270 |
355 |
375 |
485 |
196 |
305 |
350 |
● - standard ○ - additional equipment ✖ - unavailable
