Ensilage baler - SIPMA PL 7000 SILO

Ensilage balers are basic machines with the technology for ensiling the fodder in film sleeves. Their functionality makes them usable on farms around the world.

Ensilage baler - SIPMA PL 7000 SILO
Ensilage baler - SIPMA PL 7000 SILO
Ensilage baler - SIPMA PL 7000 SILO

Ensilage balers are basic machines with the technology for ensiling the fodder in film sleeves. Their functionality makes them usable on farms around the world.

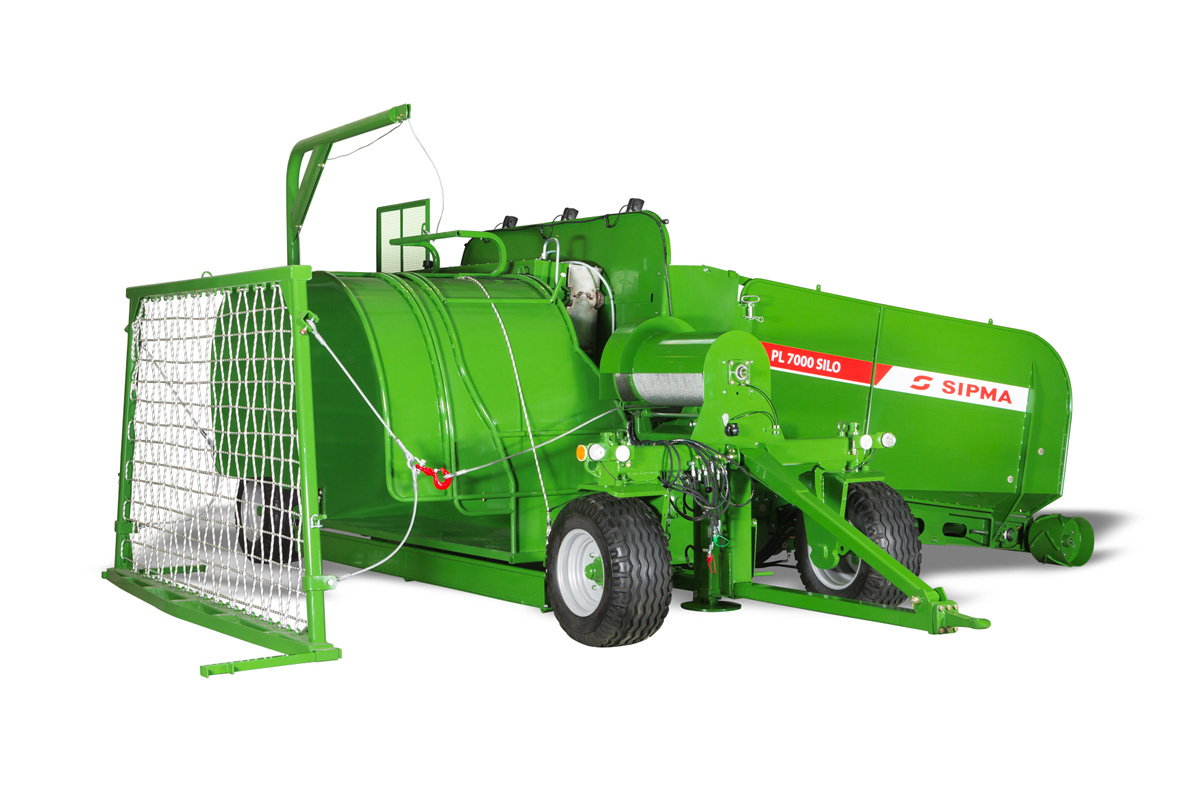

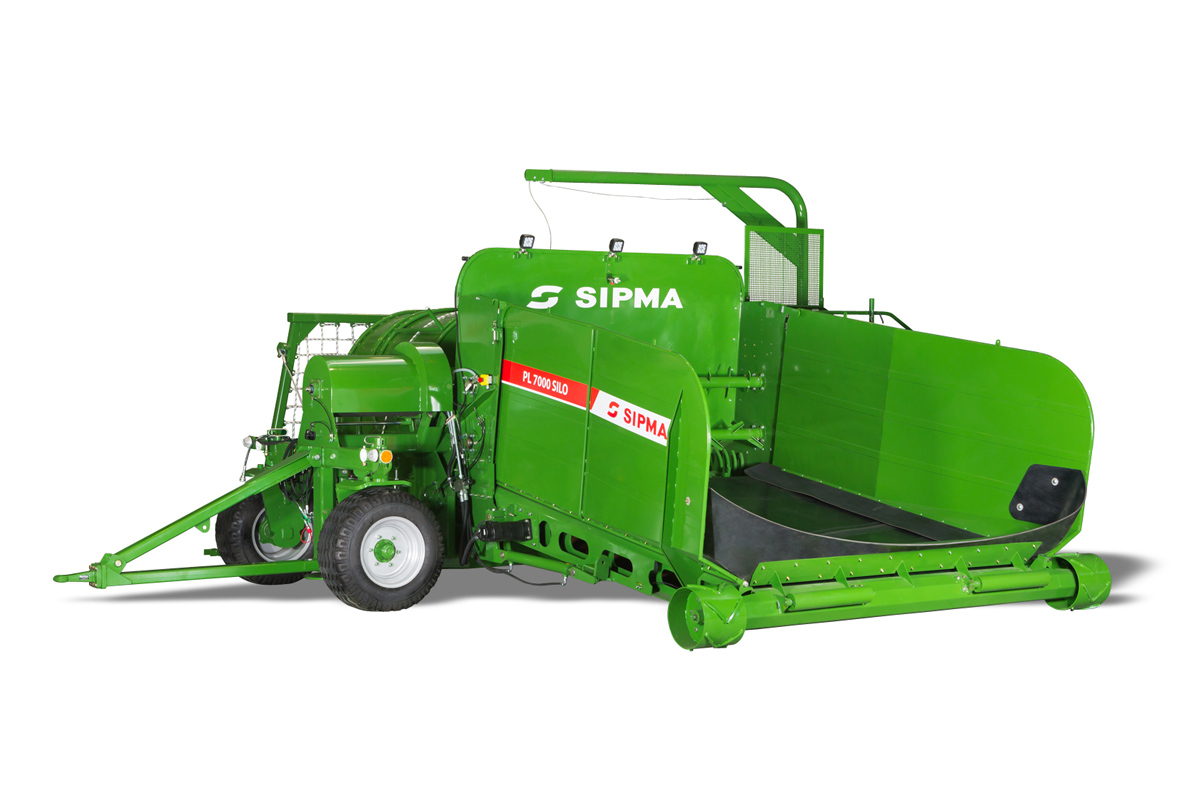

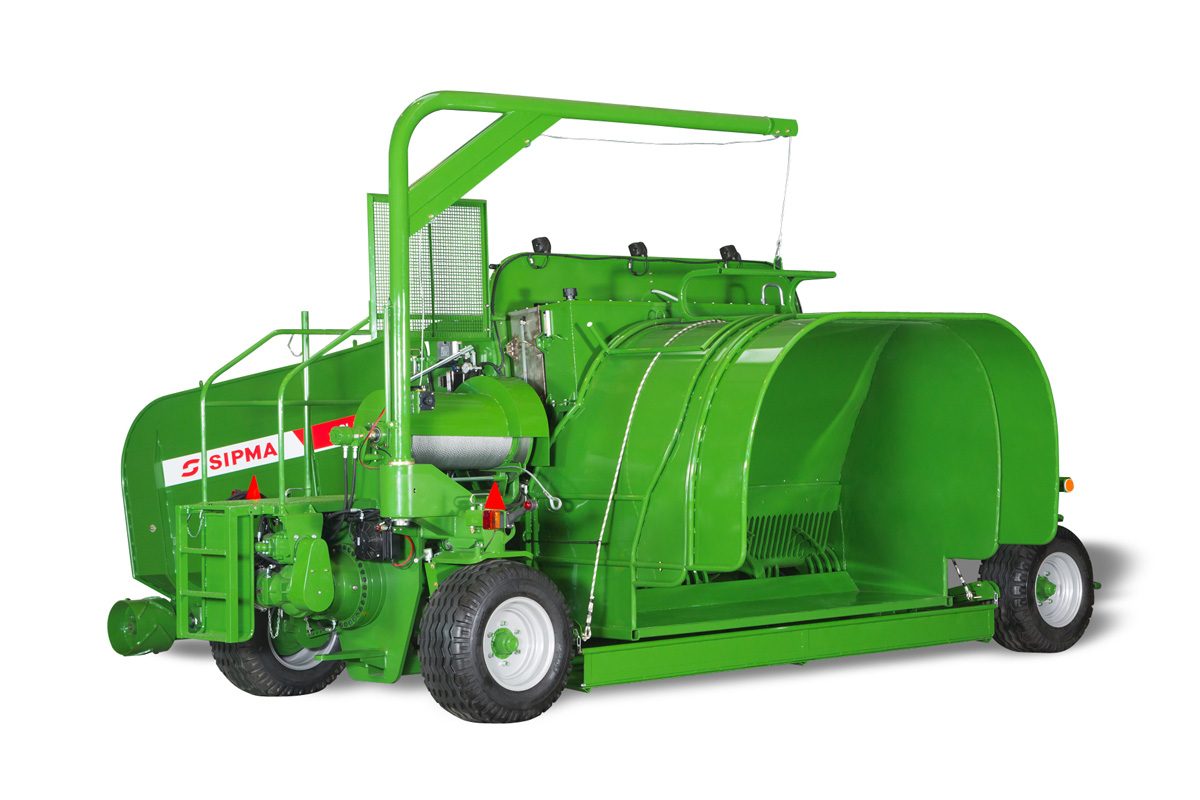

Ensilage baler SIPMA PL 7000 SILO is designed for highcompression filling of plastic sleeves with a length of 75 m and a diameter of 2.7 meters (9ft) with material intended for production of silage. Also maize green forage, wet grain, grass (pasture forage), lucerne and clover, beet pulp and brewer’s grains can be used to fill the sleeves.

Through complete and homogeneous filling of the film sleeve, the user is able to obtain high-quality forage while minimizing losses. The perfect compression of plant material in the sleeve allows you to obtain a lasting silage.

  • Ensilaging technology with an ensilaging press reduces the unit costs compared to silage in silos, eliminating the need to compress the material and investment risk associated with building a silo.
  • Mobility of the baler provides high flexibility of storage of the ensilaged material.
  • Wide belt feeder ensures easy loading of the material from the transporting equipment and great freedom in relation to the type of ensilaged forage.
  • Rotor with hydraulic braking system provides very good compression of the ensilaged bulk, which provides the anaerobic conditions and the correct course of the fermentation process.
  • Interchangeable overlays of rotor teeth allow you to extend the service life of the machine.
  • Electrohydraulic block that operates all working elements of the machine provides consistent and optimum functions of the machine.
  • Electronic control is responsible for adjustment and monitoring of the course of filling the sleeve with ensilaged material.
  • Functions of the electronic controller:
    - control of the working elements of the machine;
    - performing the automatic operation cycle of the machine;
    - control of evenness of the sleeve filling by ensuring a constant speed of the conveyor feeding the material;
    - visualization of the currently performed operation.
  • Ensilaging substances aplicator gives the possibility to add and mix well preservatives while packing it into the sleeve.
  • Foil sleeves make the area of opening for taking forage much smaller than the area of extracting silage from silos, which minimizes losses when the sleeve is opened and the forage is taken from it.

    Product for special order.
Model  PL 7000 SILO
Film sleeve diameter m (ft) 2.7 (9)
Maximum sleeve length m 75
Applicator capacity l 200
Feeder width mm 2600
Tractor hydraulic pump efficiency l/min 100 - 150
PTO rotational speed rpm 1000
Maximum speed km/h 25
Power demand kW (HP) 160 (218)
Dimensions in working position
    length mm 5800
    width mm 5600
    height mm 2960
Dimensions in transport position
    length mm 7360
    width mm 2560
    height mm 3500
Weight kg 6500
