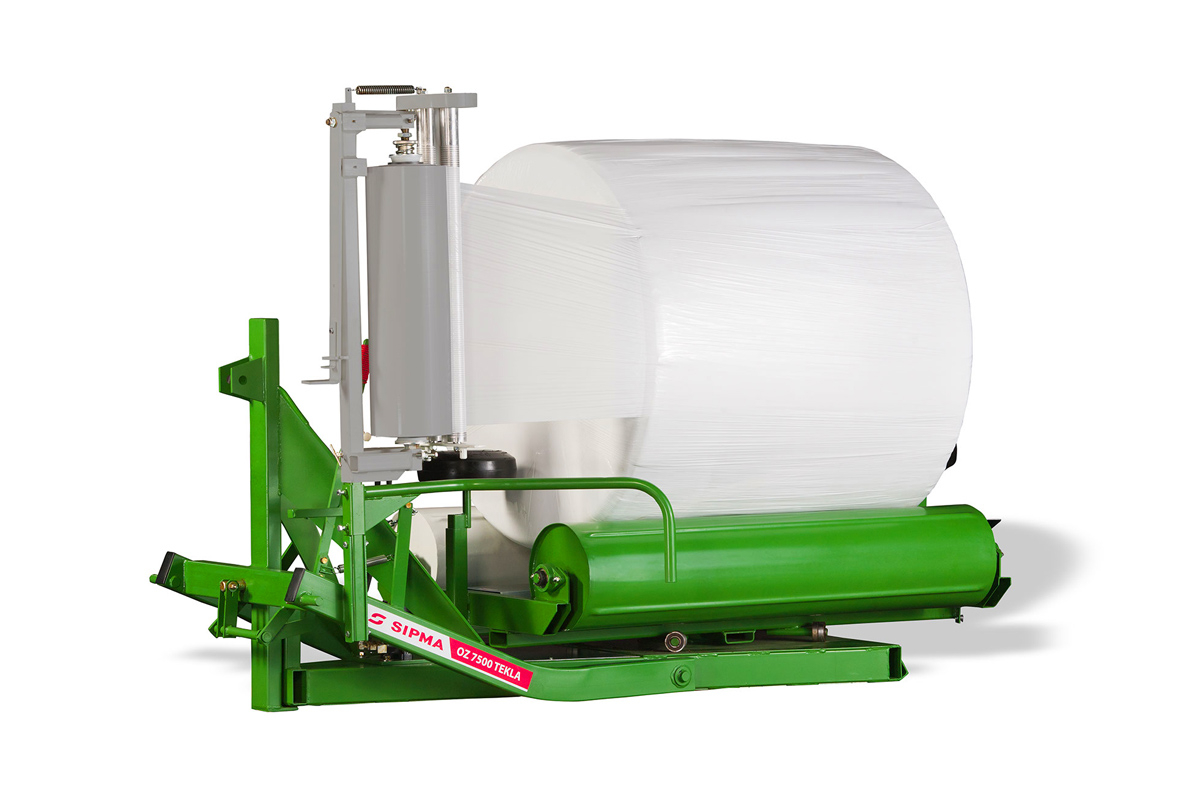

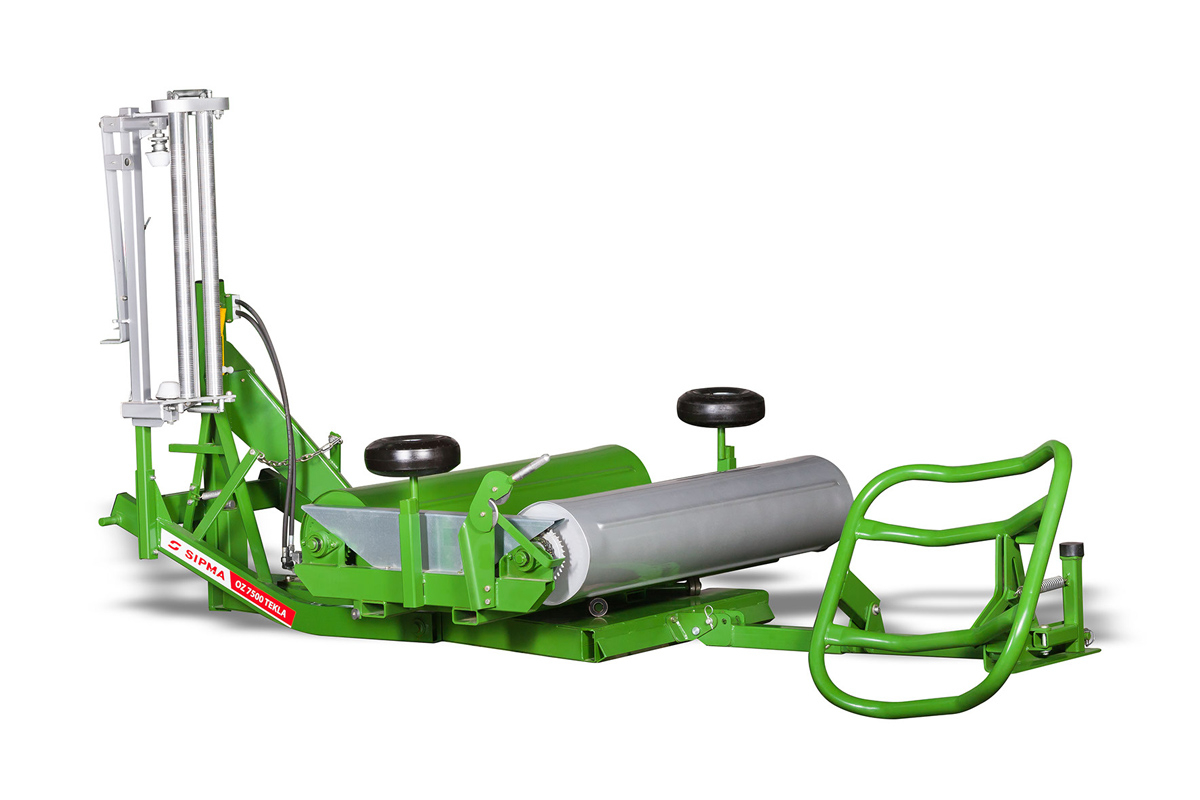

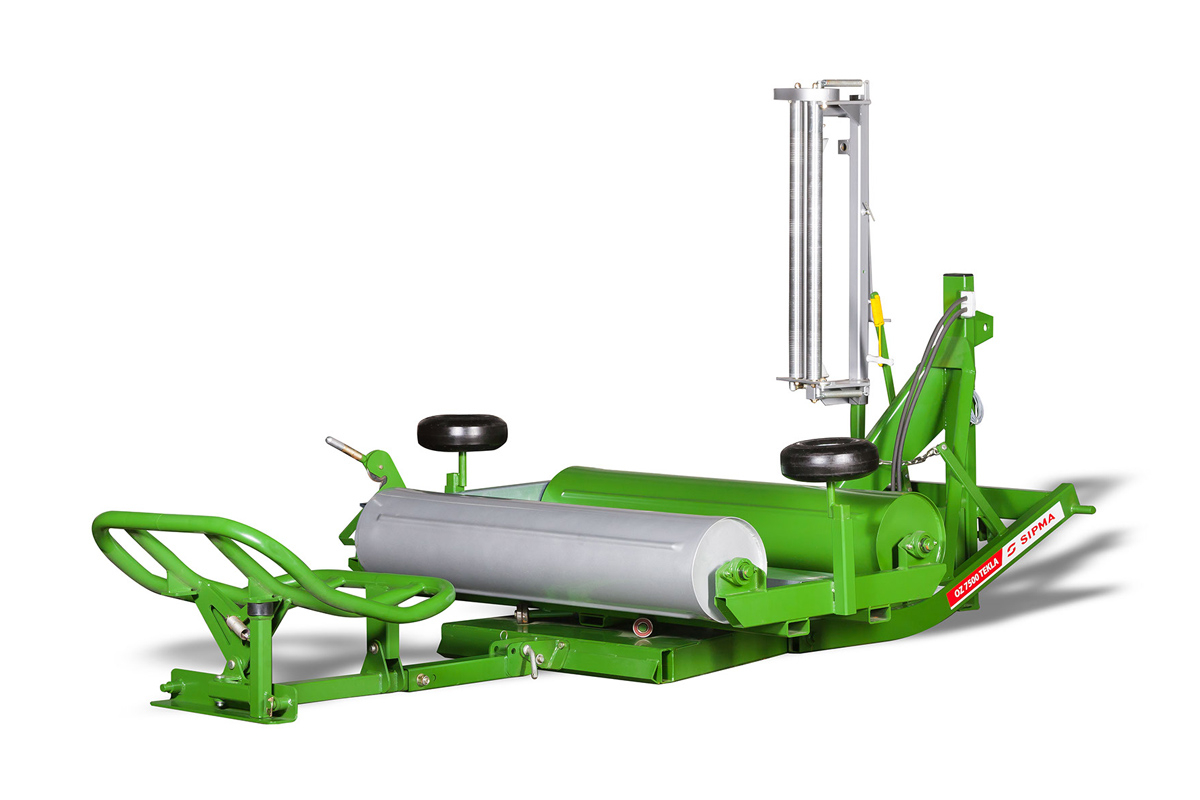

Bale wrapper - SIPMA OZ 7500 TEKLA

Stationary SIPMA OZ 7500 TEKLA bale wrapper is designed for small and medium size farms. It is installed on the threepoint linkage of the tractor.

Bale wrapper - SIPMA OZ 7500 TEKLA
Bale wrapper - SIPMA OZ 7500 TEKLA
Bale wrapper - SIPMA OZ 7500 TEKLA

Stationary SIPMA OZ 7500 TEKLA bale wrapper is designed for small and medium size farms. It is installed on the threepoint linkage of the tractor.

  • Solid frame made from bent and welded sections, makes the whole design stable and resistant to overloads.
  • Universal foil film dispenser used in the SIPMA bale wrappers allows using 0.50 and 0.75 m wide films. The 0.75 m wide bale wrapping film requires only 16 turns of the wrapping table and greatly reduces the wrapping time.
  • Aluminium milled foil film dispenser rollers ensure the initial foil stretching, tightness and proper adhesion during the wrapping process.
  • Bale counter indicates the current number of foil layers and informs about the end of wrapping process.
  • Wrapping method of the loaded bale is that successive film layers overleap each other by 50%. It ensures that the green fodder will be properly stored and efficiently ensiled.
  • Tilting table allows discharging wrapped bales, protecting them from mechanical damage at the same time. After unlocking the latch, the tilt table is lifted by tractor’s hydraulic lifting system and the bale rolls back.
  • Mounted type construction allows mounting wrapper on the tractor three-point linkage and bale wrapping at the storage areas with the use of a loader.
  • Specially designed rollers ensure proper bale wrapping, so that even shapeless bales rotate properly.
  • Durable, maintenance-free bearings ensures long and failure-free work.
  • Foil cutter (additional equipment) enables cutting off the foil during the rotation of the table after bale unloading.
  • Bale elevator (additional equipment) allows putting bales on their bottom (on the right or left side of the bale wrapper).
Model  OZ 7500 TEKLA
Bale dimensions
    bale diameter mm 1300
    bale width mm ≤ 1250
Maximum bale weight kg 1000
Foil width mm 500 / 750
Bale wrapping time sec. ˜ 120
Minimum number of bale wraps   two times
Power demand kW (HP) 28.5 (38)
Equipment
    bale elevator
    drawbar (d = 40 mm)
    drawbar (d = 50 mm)
    foil catcher
    foil cutter
    hydraulic table lock
    mechanical table lock
Dimensions
    length mm 2600
    width mm 1200
    height mm 1200
Weight kg 480
- standard     - additional equipment    ✖ - unavailable
