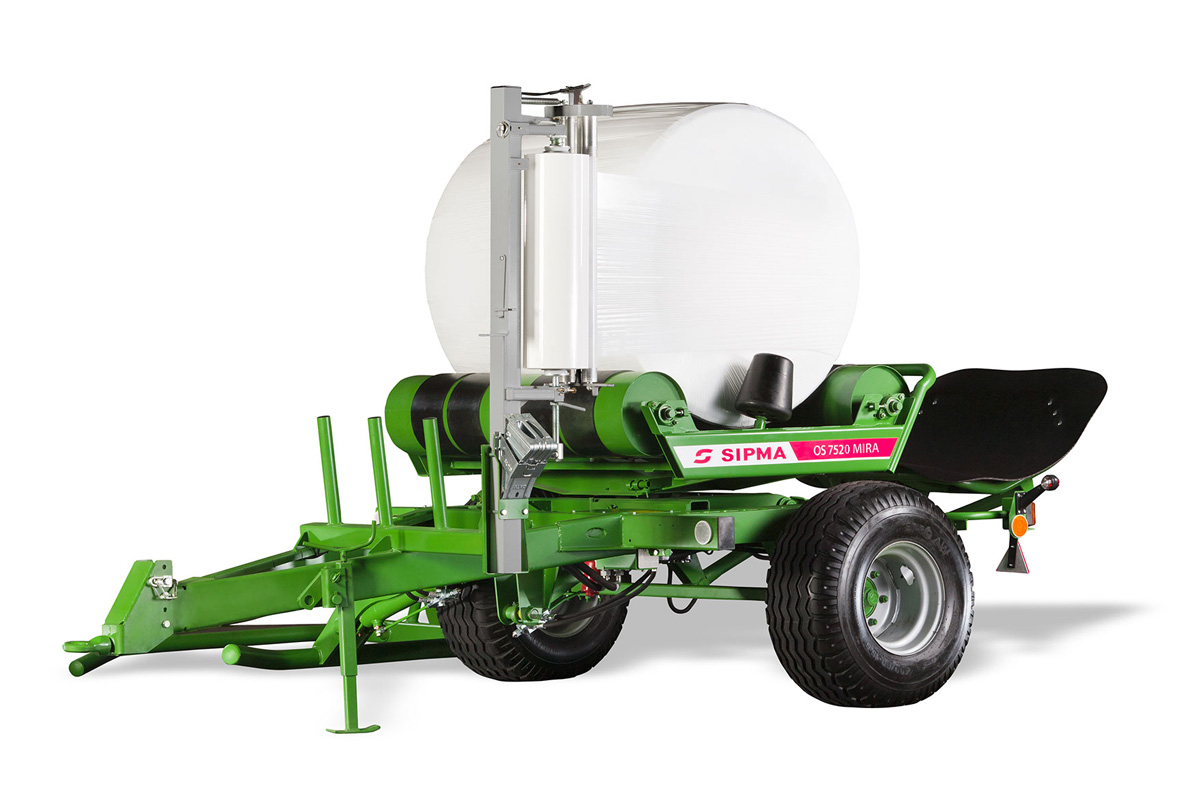

Self-loading bale wrapper SIPMA OS 7520 MIRA is an economical version of the MIRA bale wrappers, mechanically controlled by the lever distributor.
- „Side-back” technological system allows working in a direction perpendicular or parallel to the direction of the press work (across a field), ensures fast loading of bales, wrapping with foil during the drive until the next bale and high efficiency.
- Universal foil film feeder allows the use of 0.50 and 0.75 m wide films.
- Aluminium milled foil film feeder rollers ensure the initial foil stretching, tightness and proper adhesion during the wrapping process.
- Bale elevator allows for putting bales on their bottom or rolling them on their side surface into the field and also protects the wrapped bale from possible damage during unloading.
- Hydraulic film catcher-cutter works automatically after each bale wrapping process. It provides a considerable acceleration of the wrapping process and its efficiency.
- Wide tyres provide the opportunity to work on wetlands and peat fields.
- Autonomous hydraulic power system (additional equipment):
- separates the hydraulic system of the wrapper from the hydraulic system of the cooperating tractor;
- ensures constant and optimal demand of oil supplying the hydraulic block of the wrapper;
- maintains a constant level of oil purity in the system.
- Bale wrapping counter shows the current number of foil wraps, informs about the end of the bale wrapping cycle and counts number of wrapped bales.
- Lever distributor allow to control the wrapper from the tractor cabin.
Model |
OS 7520 MIRA |
Bale dimensions |
|
|
bale diameter |
mm |
1200 - 1500 |
bale width |
mm |
≤ 1250 |
Maximum bale weight |
kg |
1000 |
Foil width |
mm |
500 / 750 |
Wrapper drive |
|
hydraulic |
Bale wrapping time |
sec. |
˜ 60 |
Oil demand |
l/min. |
20 - 90 |
Power demand |
kW (HP) |
≥ 35 (48) |
Equipment |
|
|
bale elevator |
|
● |
universal foil feeder (500 / 750) |
|
● |
foil roll feeder |
|
● |
hydraulic foil catcher-cutter |
|
● |
electronic control |
|
✖ |
lever distributor |
|
● |
electrical installation allowing to move on public roads |
|
● |
wide tyres 400 x 60 - 15,5 |
|
● |
hydraulic system with Load-Sensing function |
|
✖ |
autonomous hydraulic power system |
|
○ |
Dimensions in operating position |
|
|
length |
mm |
4600 |
width |
mm |
4100 |
height |
mm |
2300 |
Dimensions in transport position |
|
|
length |
mm |
4600 |
width |
mm |
2400 |
height |
mm |
2800 |
Weight |
kg |
1540 |
● - standard ○ - additional equipment ✖ - unavailable
