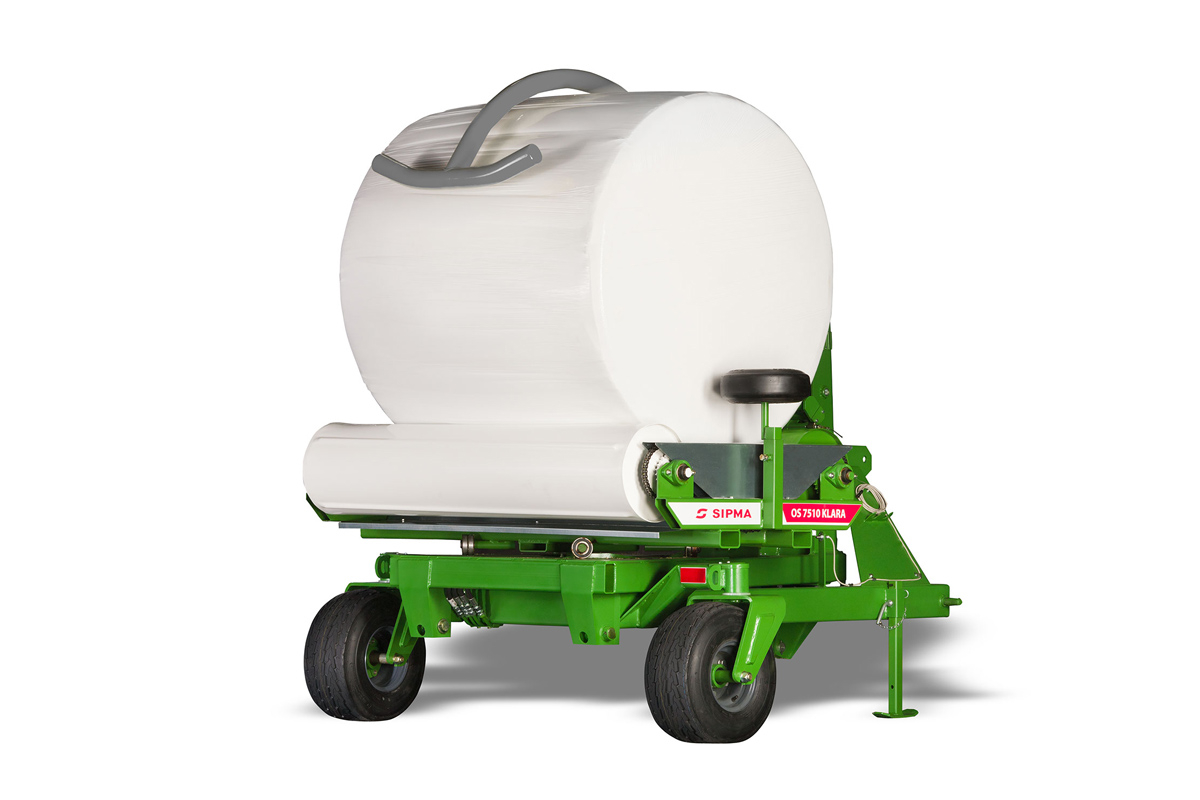

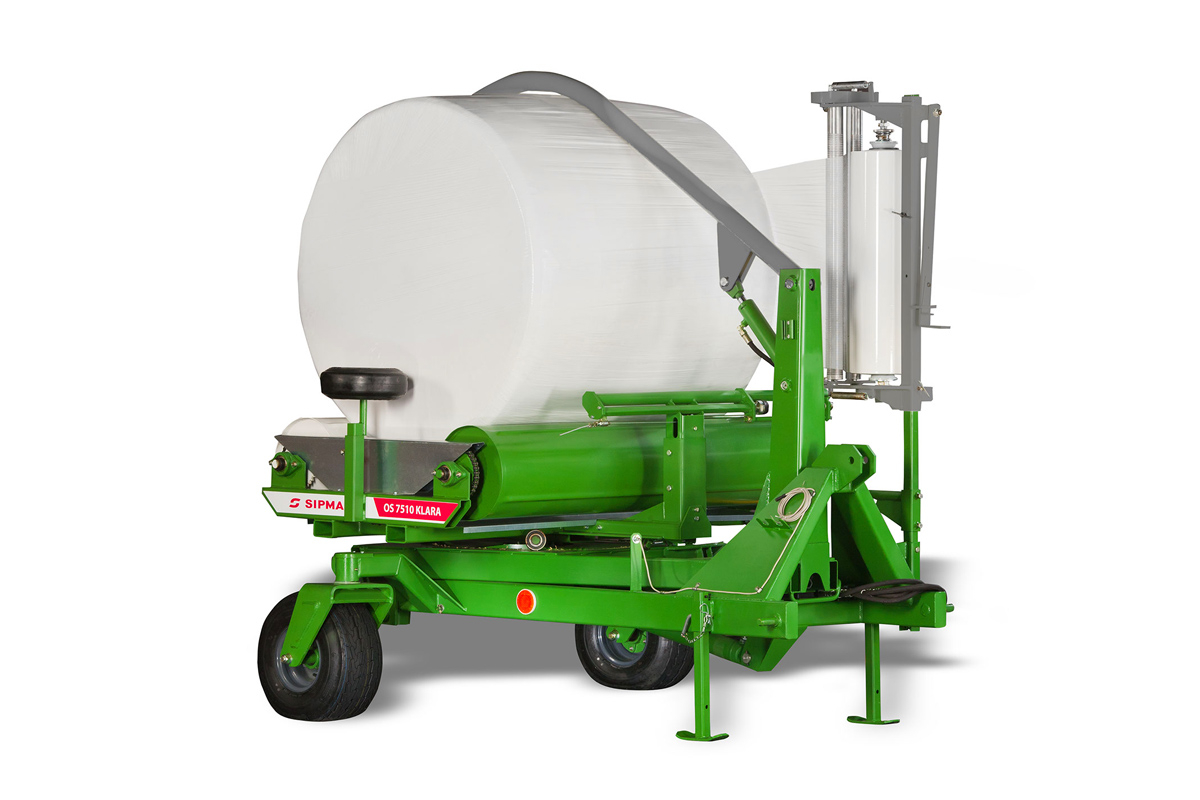

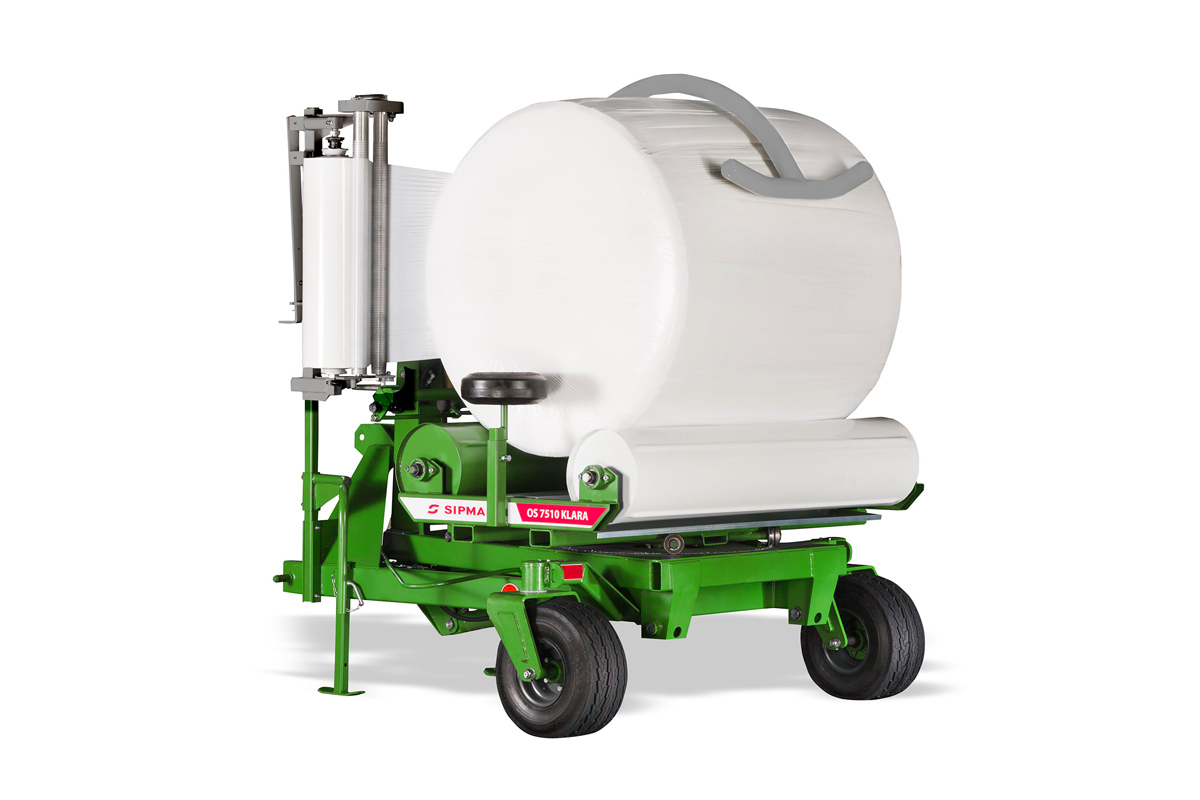

Self-loading SIPMA OZ 7510 KLARA bale wrapper is mounted to the tractor on the three point linkage and has supporting wheels. It is equipped with a lift arm that picks the rolledup bales from the rear side and allows for wrapping when the tractor moves forward towards the next bale or towards the place of storage. The machine has a modern universal film dispenser (50 cm and 75 cm wide films) as well as a film cut and hold unit eliminating the need of any interventions except for he installation of new film rolls. The machine is controlled from the tractor cab by means of a hydraulic divider.
Self-loading SIPMA OZ 7510 KLARA bale wrapper is mounted to the tractor on the three point linkage and has supporting wheels. It is equipped with a lift arm that picks the rolledup bales from the rear side and allows for wrapping when the tractor moves forward towards the next bale or towards the place of storage. The machine has a modern universal film dispenser (50 cm and 75 cm wide films) as well as a film cut and hold unit eliminating the need of any interventions except for he installation of new film rolls. The machine is controlled from the tractor cab by means of a hydraulic divider.
Model | OS 7510 KLARA | |
---|---|---|
Bale dimensions | ||
bale diameter | mm | 1200 - 1300 |
bale width | mm | ≤ 1300 |
Maximum bale weight | kg | 1000 |
Foil width | mm | 500 / 750 |
Bale wrapping time | sec. | ˜ 120 |
Minimum number of bale wraps | two times | |
Power demand | kW (HP) | 20 (30) |
Equipment | ||
bale elevator | ✖ | |
drawbar (d = 40 mm) | ○ | |
drawbar (d = 50 mm) | ○ | |
foil catcher | ● | |
foil cutter | ● | |
hydraulic table lock | ○ | |
mechanical table lock | ● | |
Dimensions | ||
length | mm | 2170 |
width | mm | 1940 |
height | mm | 2150 |
Weight | kg | 780 |
