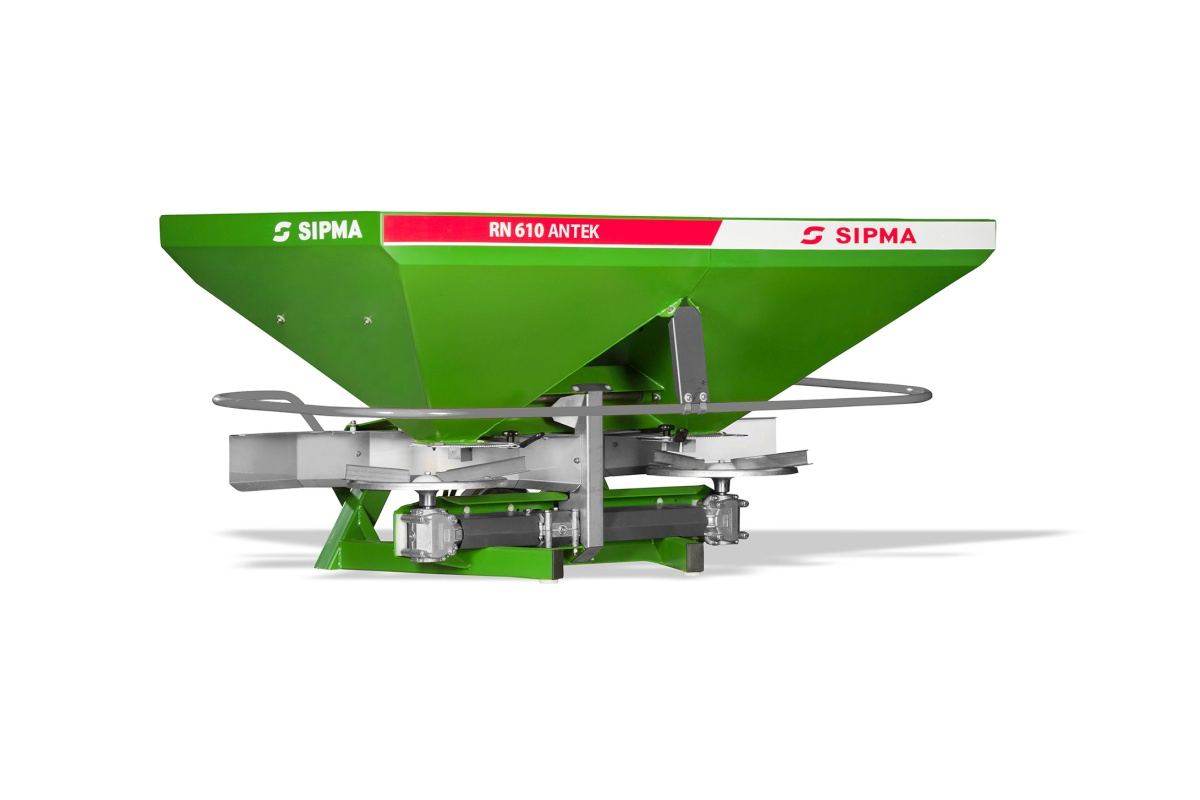

SIPMA RN 610 ANTEK and SIPMA RN 500 BORYNA mineral fertilizer distributors are easy to operate and economical machines designed for smaller and medium-sized farms.
SIPMA has a modern sowing hall where, with the help of advanced electronic equipment, sowing tables are prepared for all types of mineral fertilizer distributors on the market. SIPMA has focused the technological development on plant nutrition optimization. SIPMA offers a fertiliser spreading program that conforms to any European standards concerning accurate spreading and border spreading.
- Robust frame construction allowing easy and quick aggregation to the tractor, optimally adapted to the spreader’s capacity. It guarantees long-lasting and reliable spreader operation.
- Sowing system made entirely of stainless steel, it ensures that fertiliser is evenly metered onto the spreading discs and precisely distributes the fertiliser over the field surface.
- Ergonomics of use:
- low filling height;
- tool-free rate and working width adjustment systems;
- hopper filling scale with large inspection holes;
- set of blades for lower spreading range;
- calibration test kit and spreading tables.
- LIMES boundary seeding system mechanically or electronically controlled (additional equipment) allows work to be carried out at field boundaries in accordance with fertiliser regulations, while ensuring that the correct application rate is delivered right up to the field boundary, and eliminates economic losses resulting from over-fertilisation or the spreading of fertiliser to neighbouring fields. Used when the first tramline lies in the middle of the spreader’s working width. Made of stainless steel.
- Resilient pendulum stirrer ensures an even flow of fertilizer to the spreading discs.
- Border spreading discs (additional equipment) enable fertiliser to spread at the edge of the field. Made of stainless steel.
- Hydraulic seed control the dual metering and closing gate system is operated independently for both sides, with the possibility of controlling both closing gates simultaneously. Double-acting slide gates can be quickly opened and closed at the ends of the field using a distributor.
- Shut-off valve (standard equipment) preventing the sliders from opening during travel when the tractor hydraulics are not functioning correctly.
- Shape of the agitator guaranteeing that fertiliser is taken up from the entire width of the hopper.

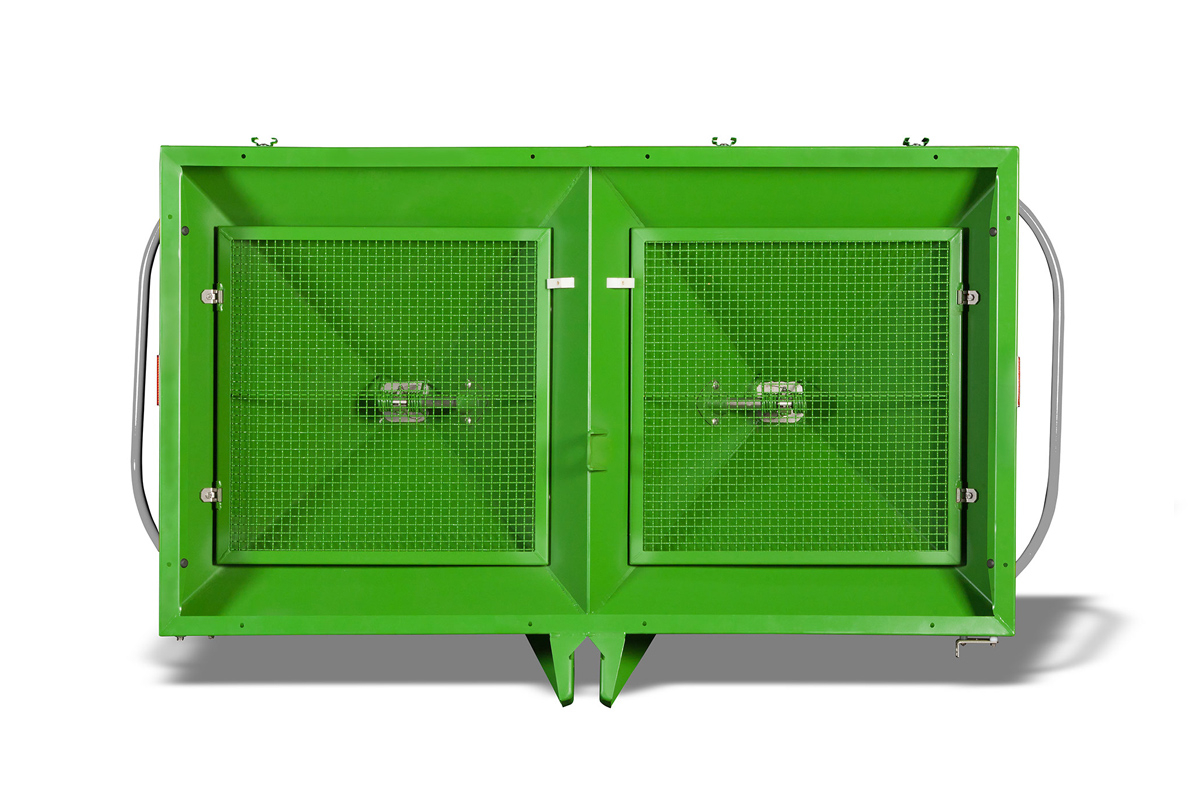

- Fine mesh sieves fitted to the tank protect the spreader against clumped fertiliser or dirt entering the spreading area. For cleaning, the machines easily tilt upwards and lock into place.
- Working parts made of stainless steel (spreader discs, vanes, hopper bottom sliders and guards) guarantee long-lasting and reliable spreader operation.
- Rack stand cover (additional equipment) mounted on the hopper makes spreader operation independent of weather conditions. Opening by means of a lever, lockable by means of rubber straps. bolted construction to save transport space and reduce shipping costs.
- Roll-up cover (additional equipment) ensures maximum fertiliser protection during rainfall while guaranteeing a maximum opening during filling. Opening by means of a lever, lockable by means of rubber straps. bolted construction to save transport space and reduce shipping costs.
- Extensions (additional equipment) are easily mounted on the main hopper and allow the hopper capacity to be adjusted as required, making the spreader suitable for use on both small and large areas. Simple assembly to the basket, bolted construction which saves transport space and reduces shipping costs.
- LED road lighting and warning signs improve safety and increase visibility for road users in all conditions. Eliminates the need for portable lighting when the spreader blinds the tractor lights.
- Spreading discs equipped with two pairs of blades, allow fertiliser spreading in working widths of 10 - 24 m.
- Transport wheels facilitating disconnection of the spreader and manoeuvring around the yard.
- Electronic controller (additional equipment) (only in SIPMA RN 500 BORYNA) supervises fertiliser spreading according to the set operating parameters.
- Functions of the electronic controller:
- electronic speed-dependent seed rate control. The set application rate is always the same after changing the working speed;
- manual or automatic spreading mode;
- measurement of driving speed by means of a GPS module in automatic mode;
- control of metering sliders;
- determining the dosing aperture based on selected parameters;
- speed programming in manual mode;
- half-seeding possible;
- the possibility of adjusting the dosage while driving;
- the possibility of conducting a spin test;
- measurement of acreage sown and hours worked;
- bin emptying function;
- activation of border sowing with one-sided reduced rate; operation of LIMES border sowing system;
- supports many languages.
Model |
|
RN 610 ANTEK |
RN 500 BORYNA |
Working width |
m |
10 - 24* |
10 - 24* |
Hopper capacity |
l |
610 |
500 |
with extension 1 x 250 l / 2 x 250 l |
l |
✖ |
750 / 1000 |
with extension 1 x 400 l / 2 x 400 l |
l |
✖ |
900 / 1300 |
with extension 1 x 600 l |
l |
1210 |
✖ |
Maximum load capacity |
kg |
1450 |
1350 |
Filling height |
m |
0,98 |
0,95 |
with extension 1 x 250 l / 2 x 250 l |
m |
✖ |
1,10 / 1,25 |
with extension 1 x 400 l / 2 x 400 l |
m |
✖ |
1,18 / 1,41 |
with extension 1 x 600 l |
m |
1,26 |
✖ |
Filling width |
m |
1,96 |
1,73 |
Total width |
m |
2,52 |
2,28 |
Total length |
m |
1,26 |
1,25 |
Rotation speed of the spreading discs |
rpm |
720 |
720 |
Frame linkage |
|
Cat. II |
Cat. II |
Basic machine weight |
kg |
260 |
240 |
Control |
|
|
|
Lever-operated hydraulic control |
|
● |
● |
shut-off valve |
|
● |
● |
dose adjustment |
|
manual |
manual |
half-machine seeding cut-off |
|
● |
● |
Electronic controller - ARETE |
|
✖ |
○ |
speed measurement |
|
✖ |
manual / GPS |
GPS antenna |
|
✖ |
● |
controller (display) |
|
✖ |
monochromatic |
half-machine seeding cut-off |
|
✖ |
● |
Equipment |
|
|
|
PTO shaft with with shear wheel |
|
● |
● |
PTO shaft with overload clutch |
|
○ |
○ |
transport wheels |
|
● |
● |
LED road lighting |
|
● |
● |
calibration kit |
|
● |
● |
extension |
|
○ |
○ |
rack stand cover |
|
✖ |
○ |
roll-up cover |
|
○ |
○ |
border spreading discs |
|
○ |
○ |
LIMES boundary seeding system - mechanical |
|
○ |
○ |
LIMES boundary seeding system - electronic |
|
✖ |
○ |
● - standard ○ - additional equipment ✖ - unavailable
* - depending on the spreading blades and fertilizer spread
